Navigation Module

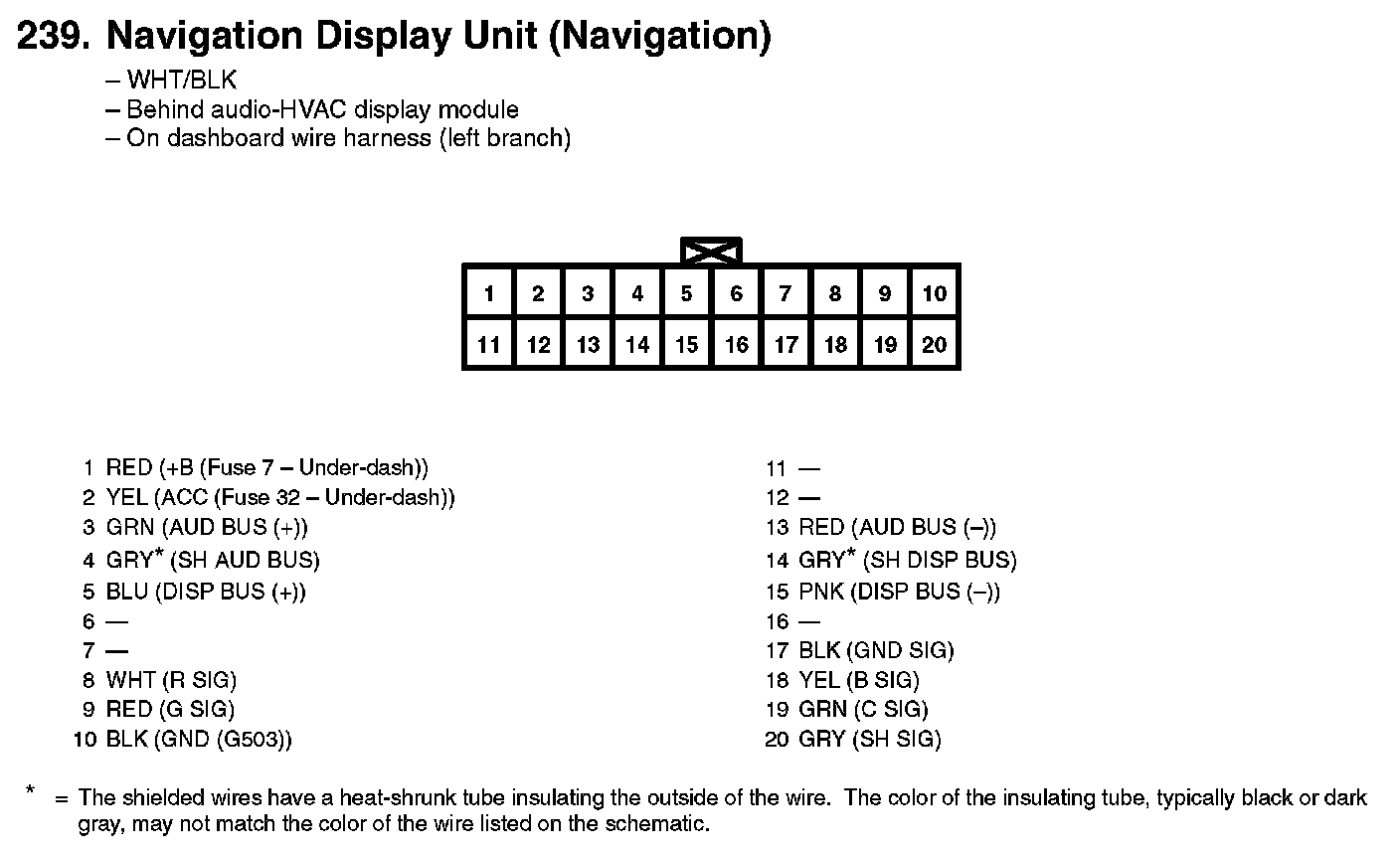

239. Navigation Display Unit (Navigation):

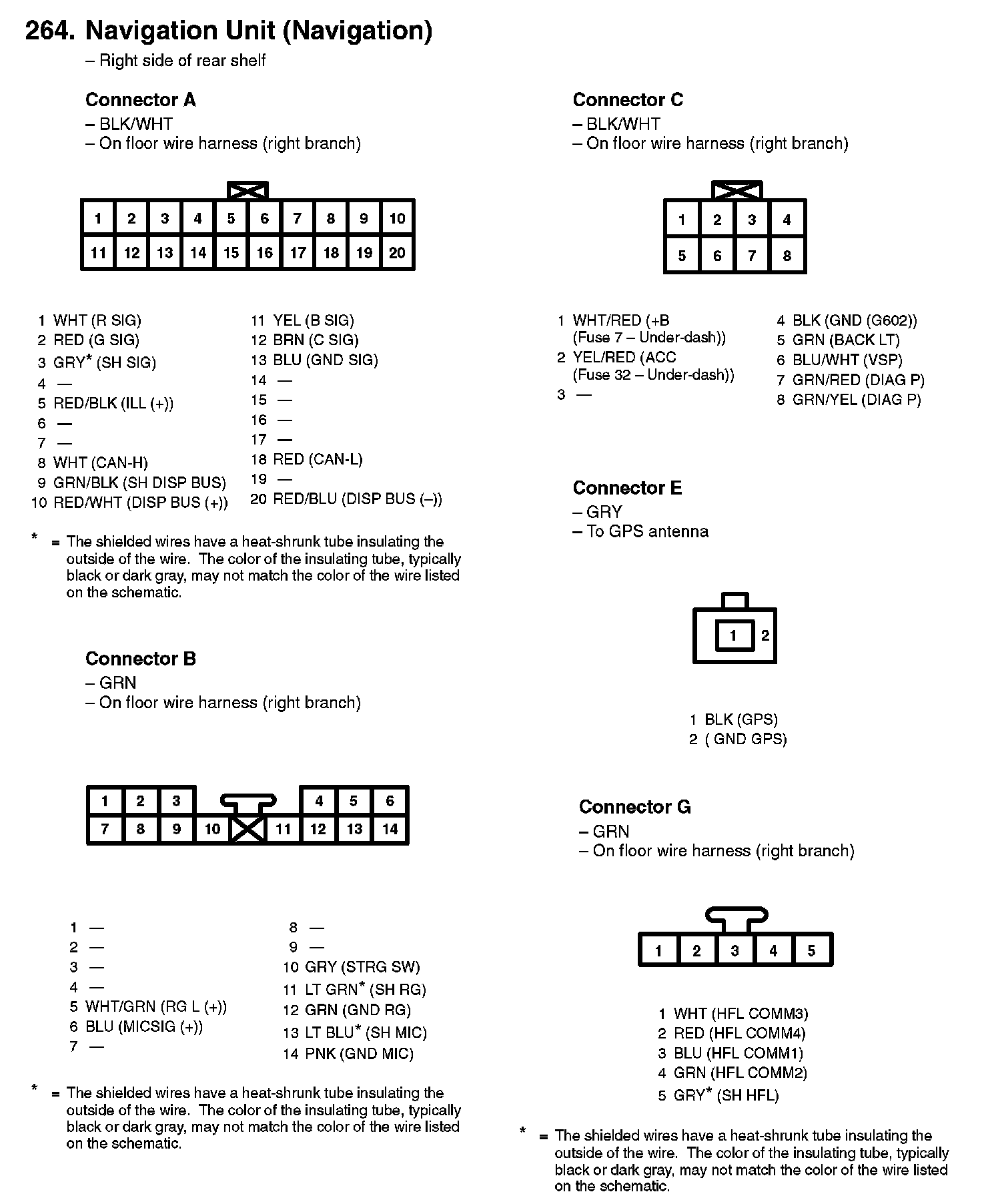

264. Navigation Unit (Navigation):

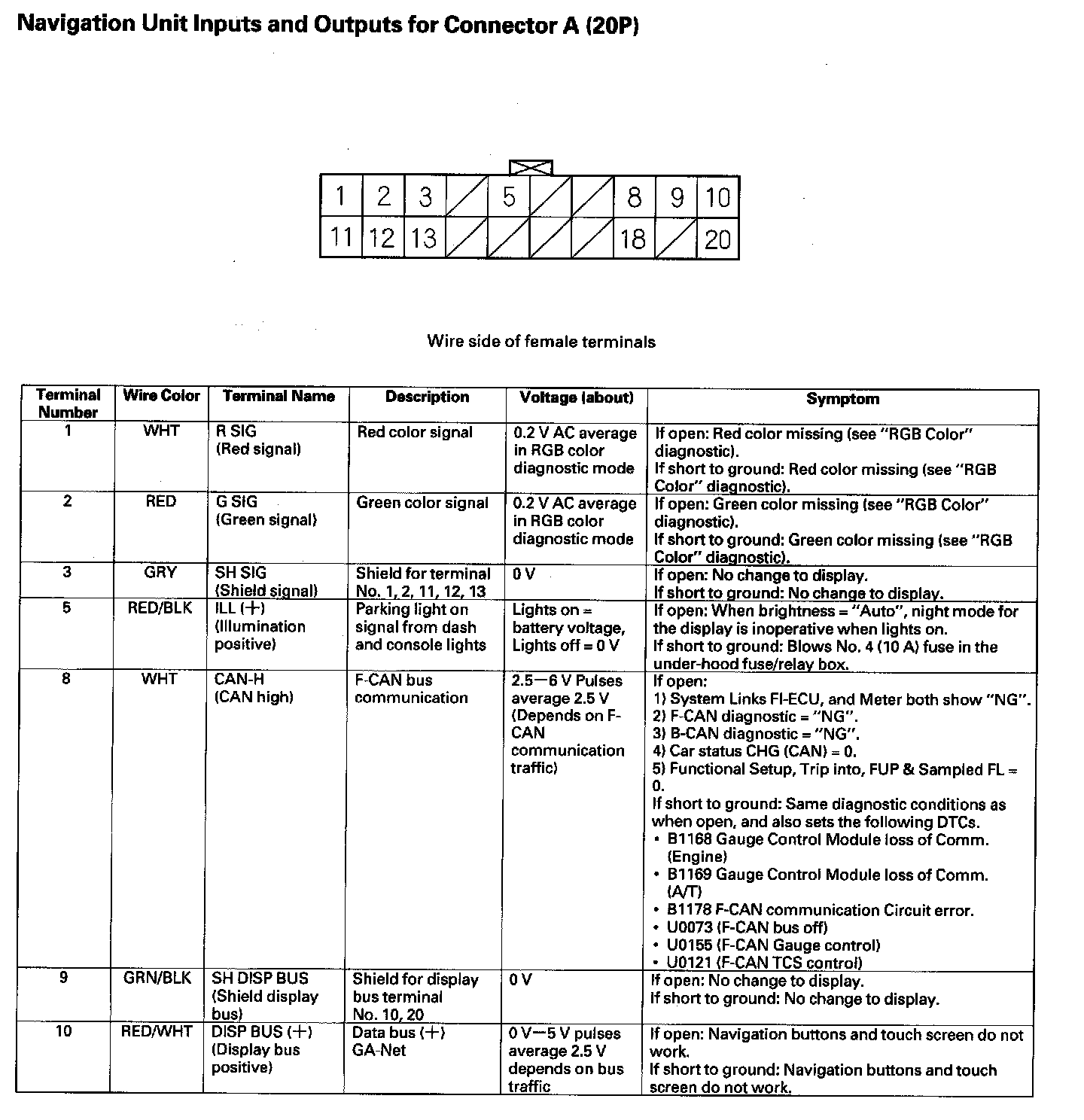

Navigation Unit Inputs And Outputs For Connector A (20P) (Part 1):

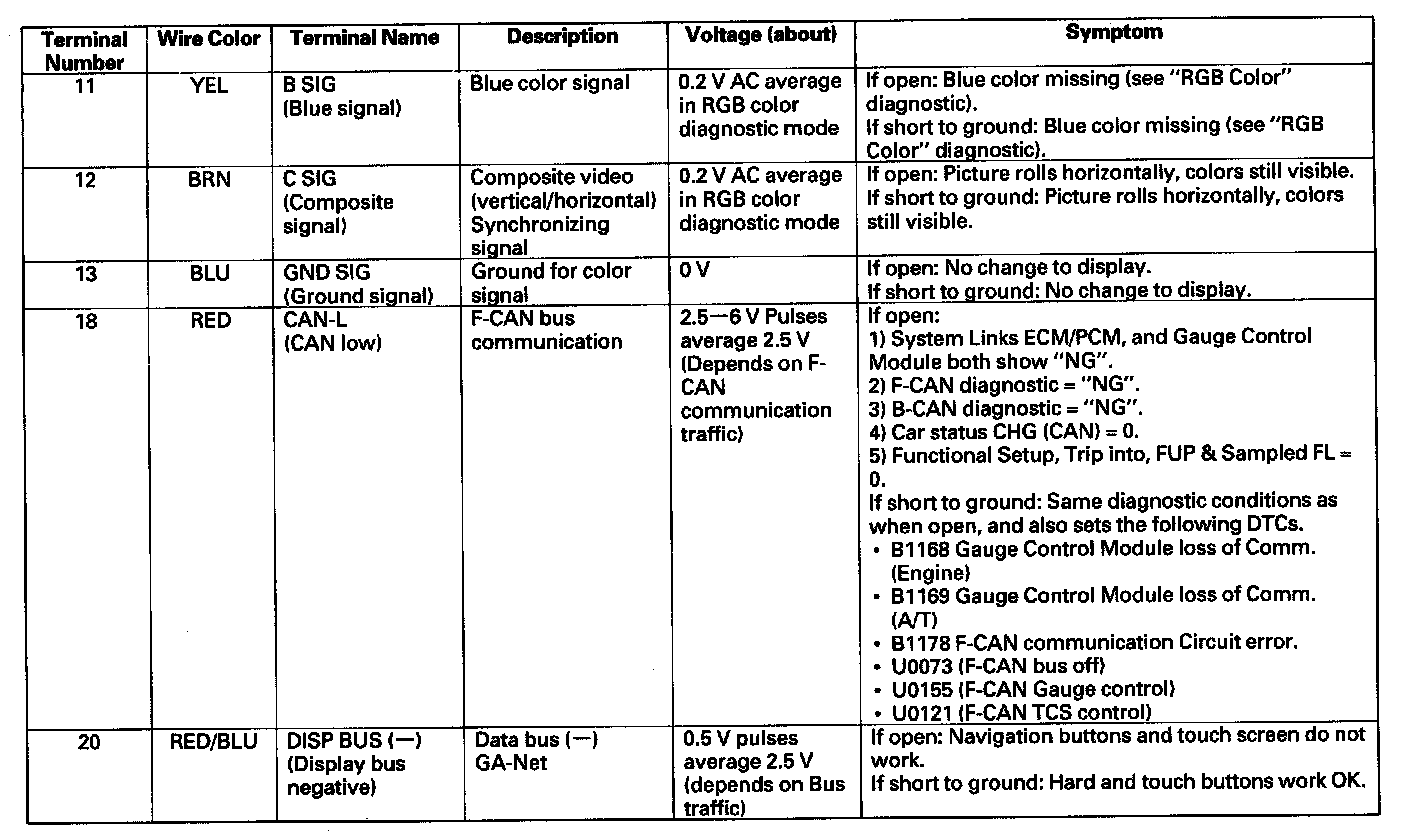

Navigation Unit Inputs And Outputs For Connector A (20P) (Part 2):

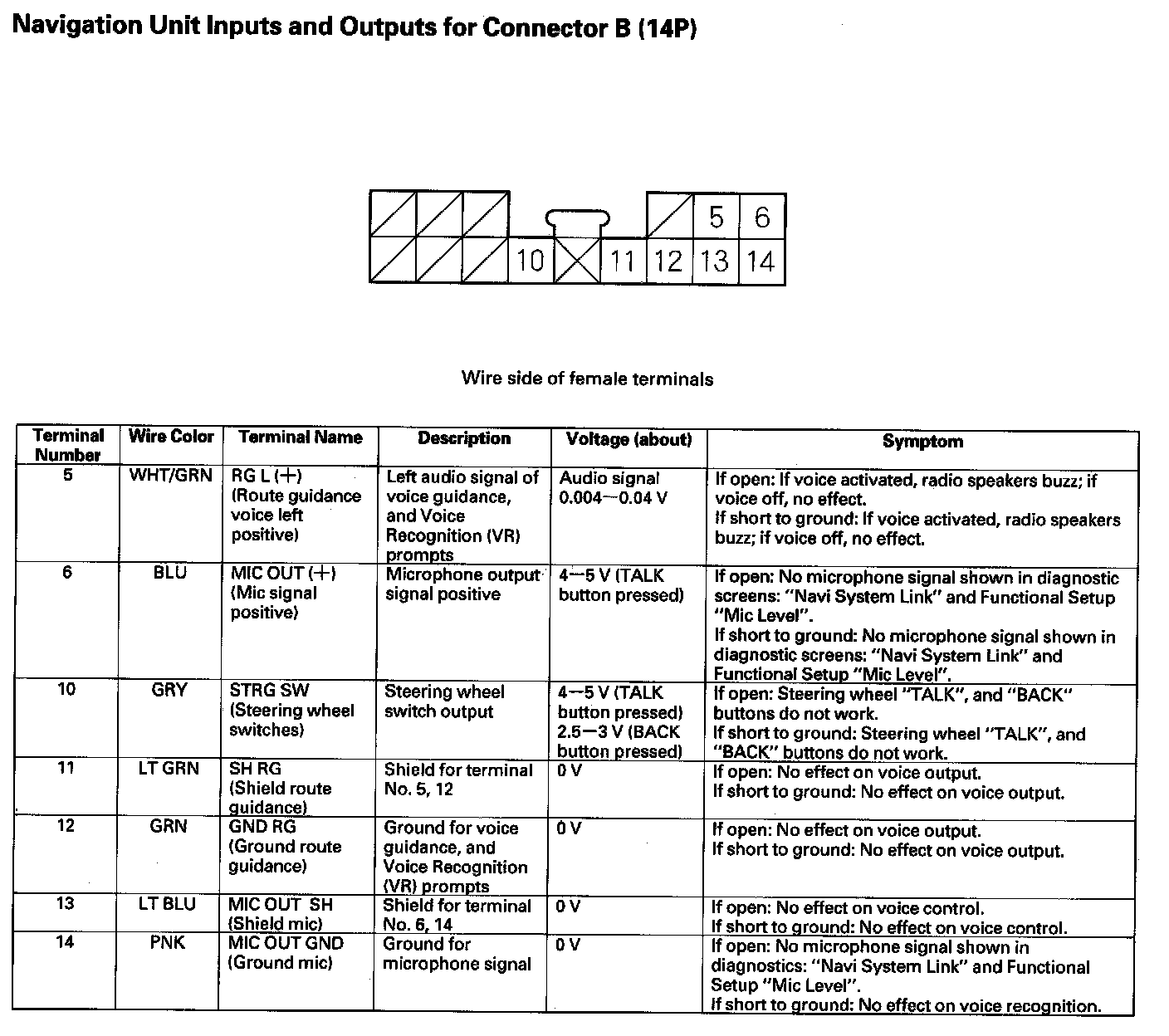

Navigation Unit Inputs And Outputs For Connector B (14P):

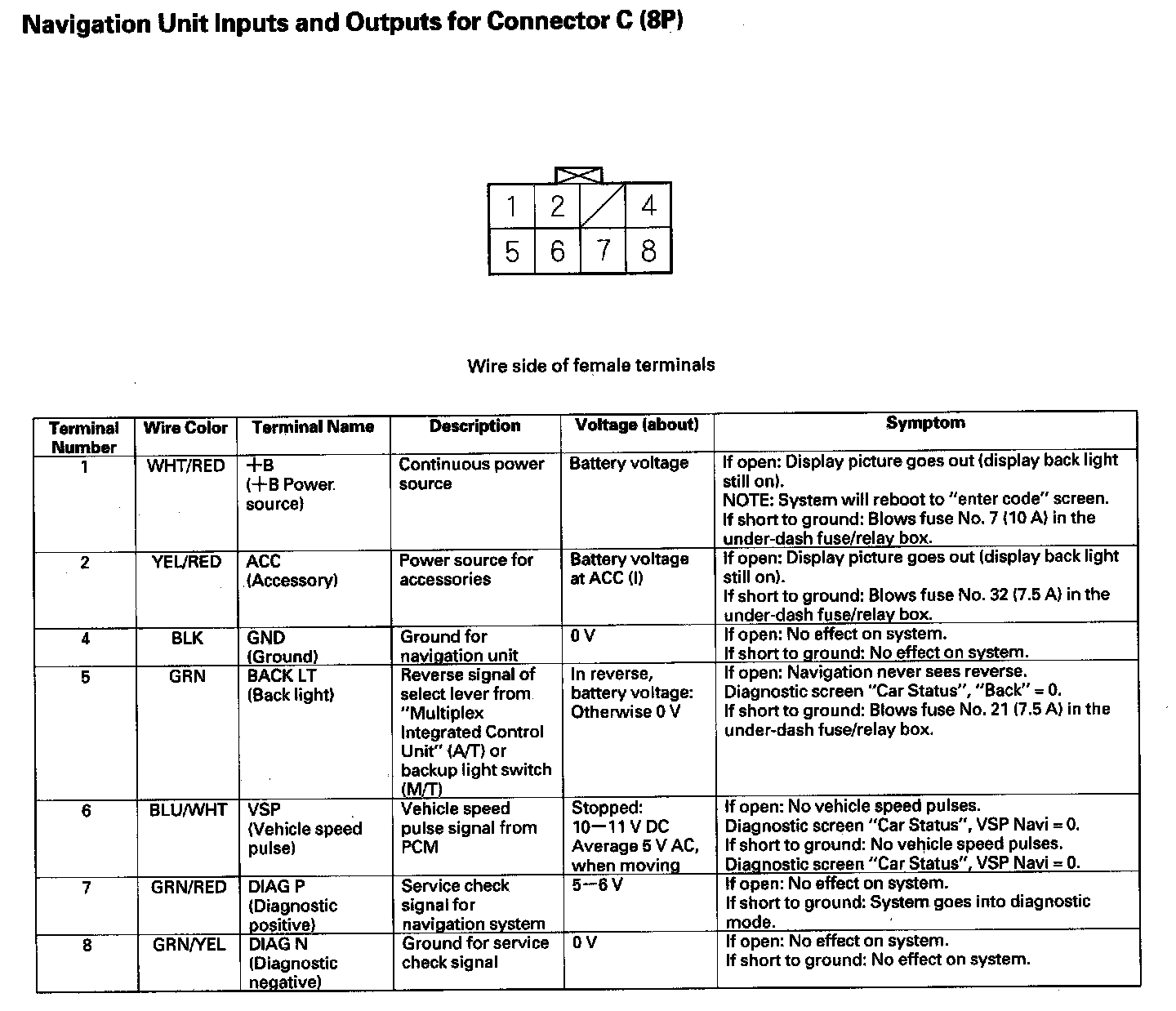

Navigation Unit Inputs And Outputs For Connector C (8P):

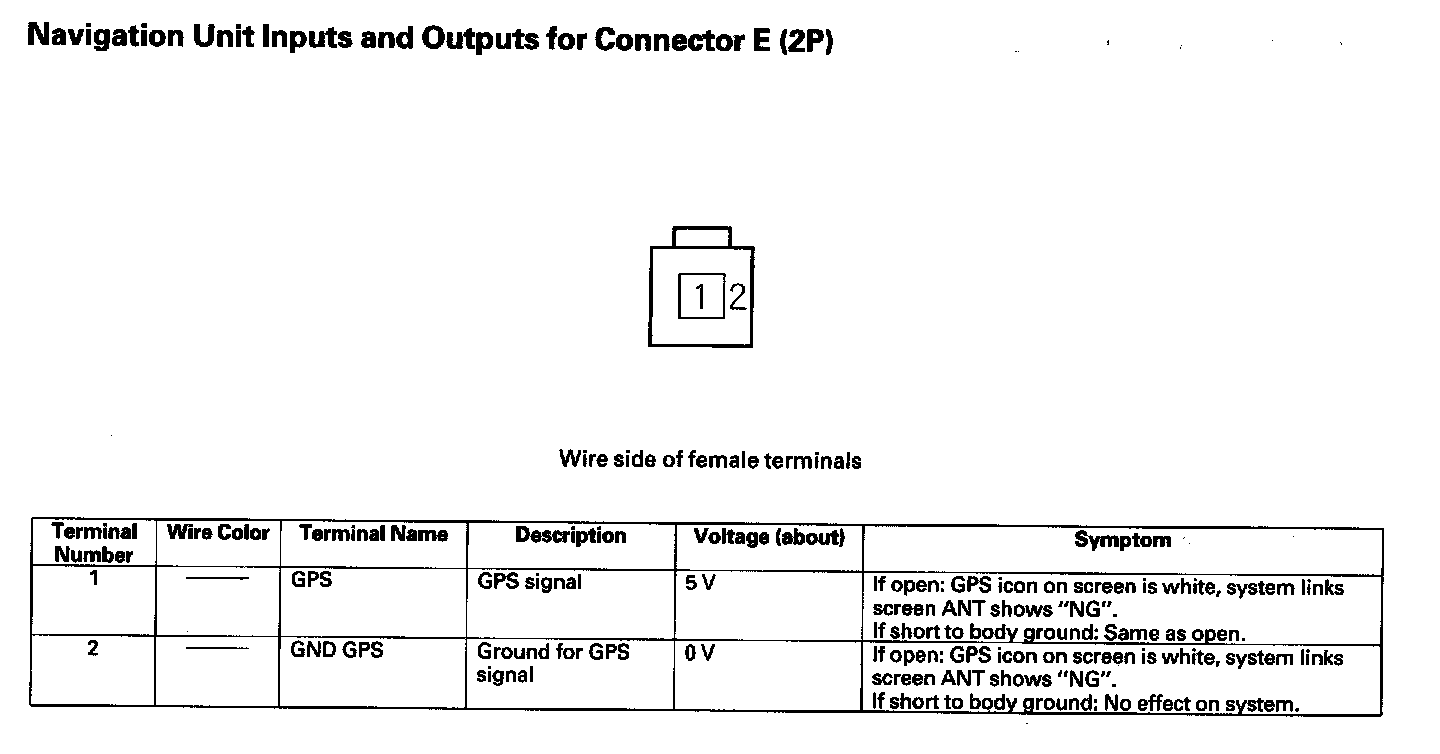

Navigation Unit Inputs And Outputs For Connector E (2P):

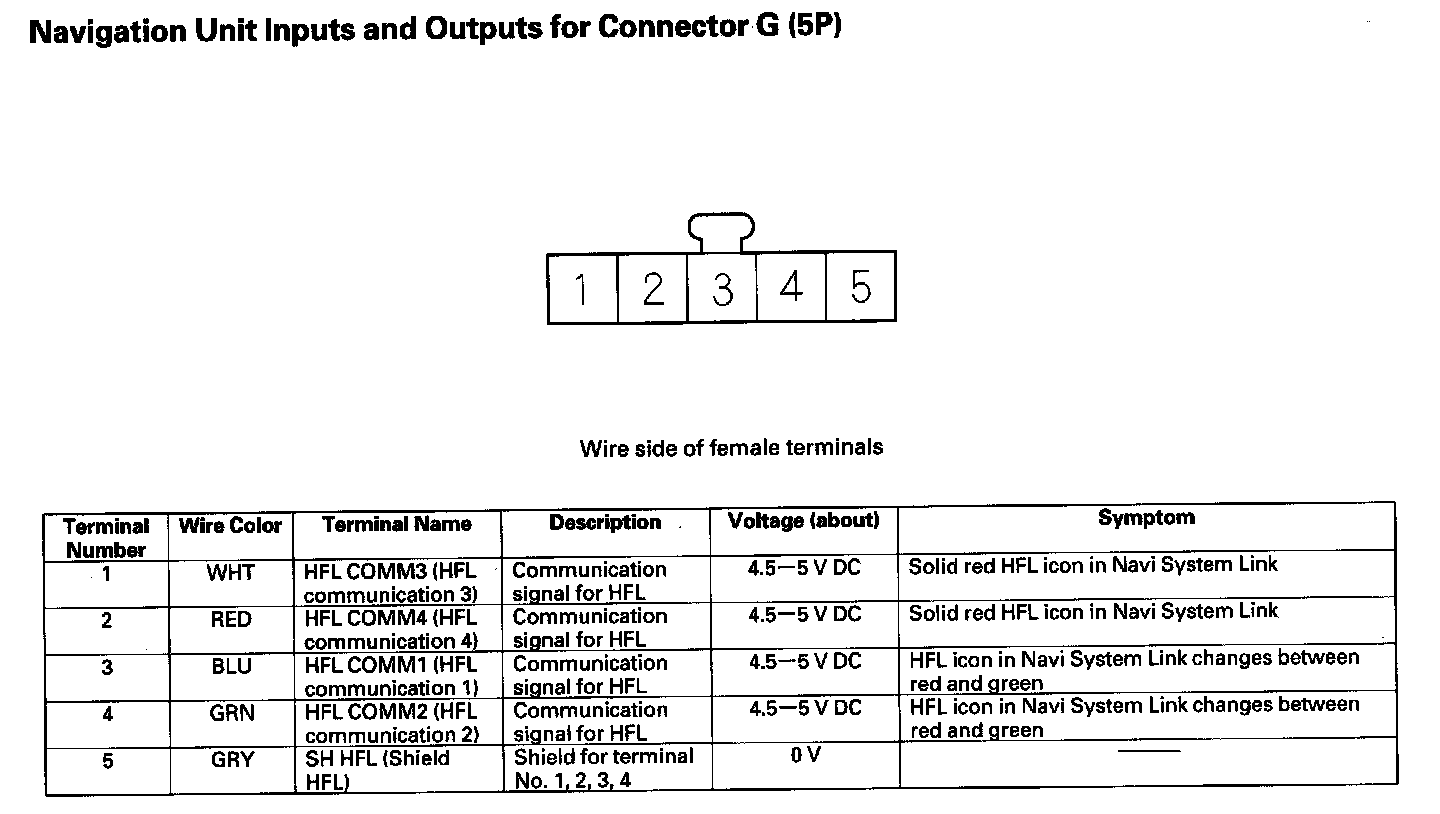

Navigation Unit Inputs And Outputs For Connector G (5P):
