System Diagram

Navigation System Circuit Diagram (Part 3):



Navigation System Circuit Diagram (Part 4):



Navigation System Circuit Diagram (Part 5):

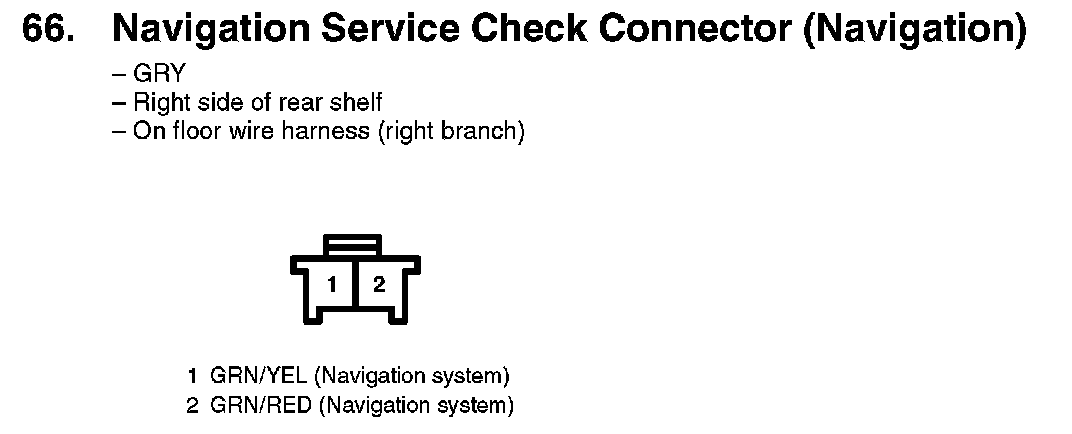

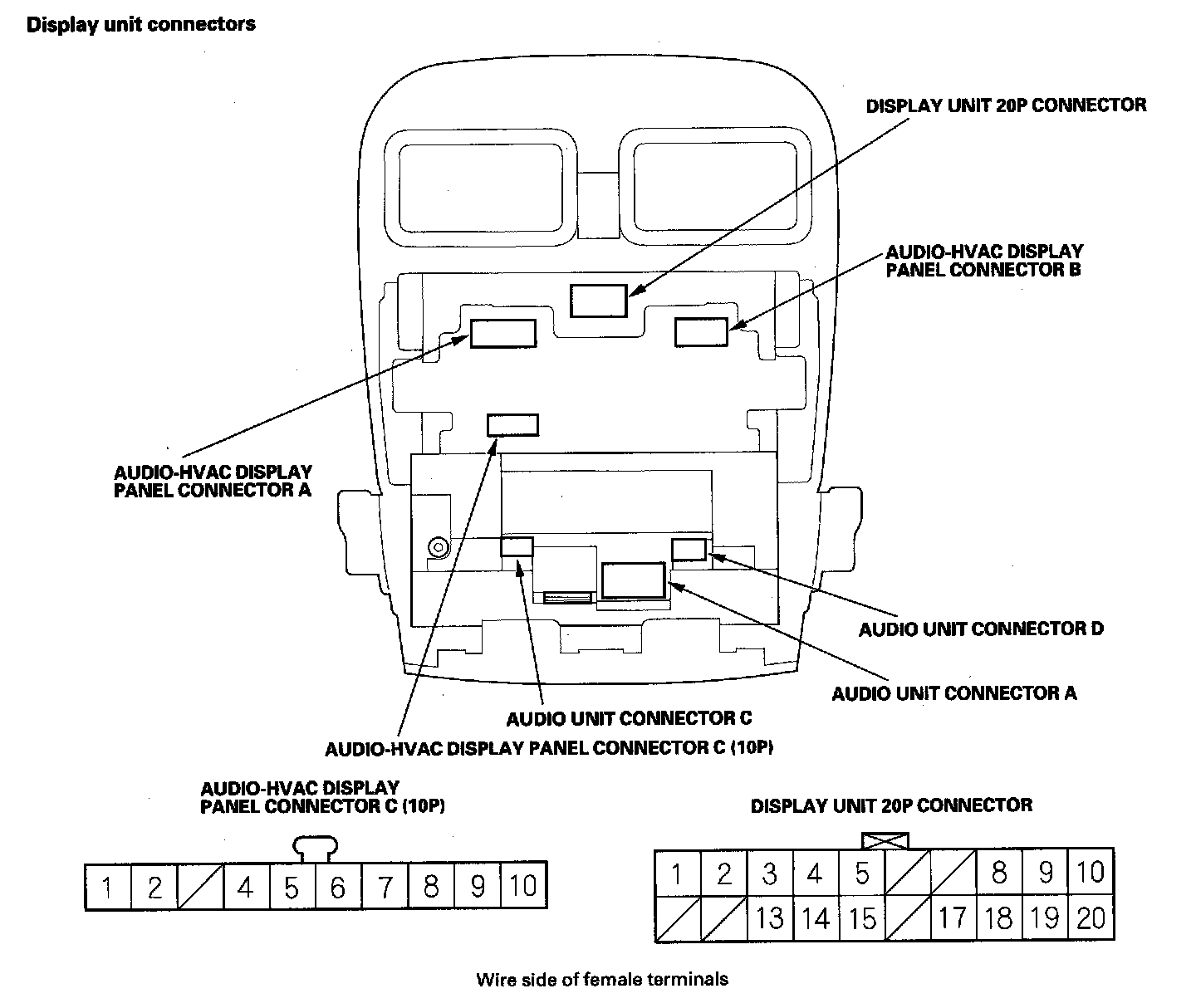

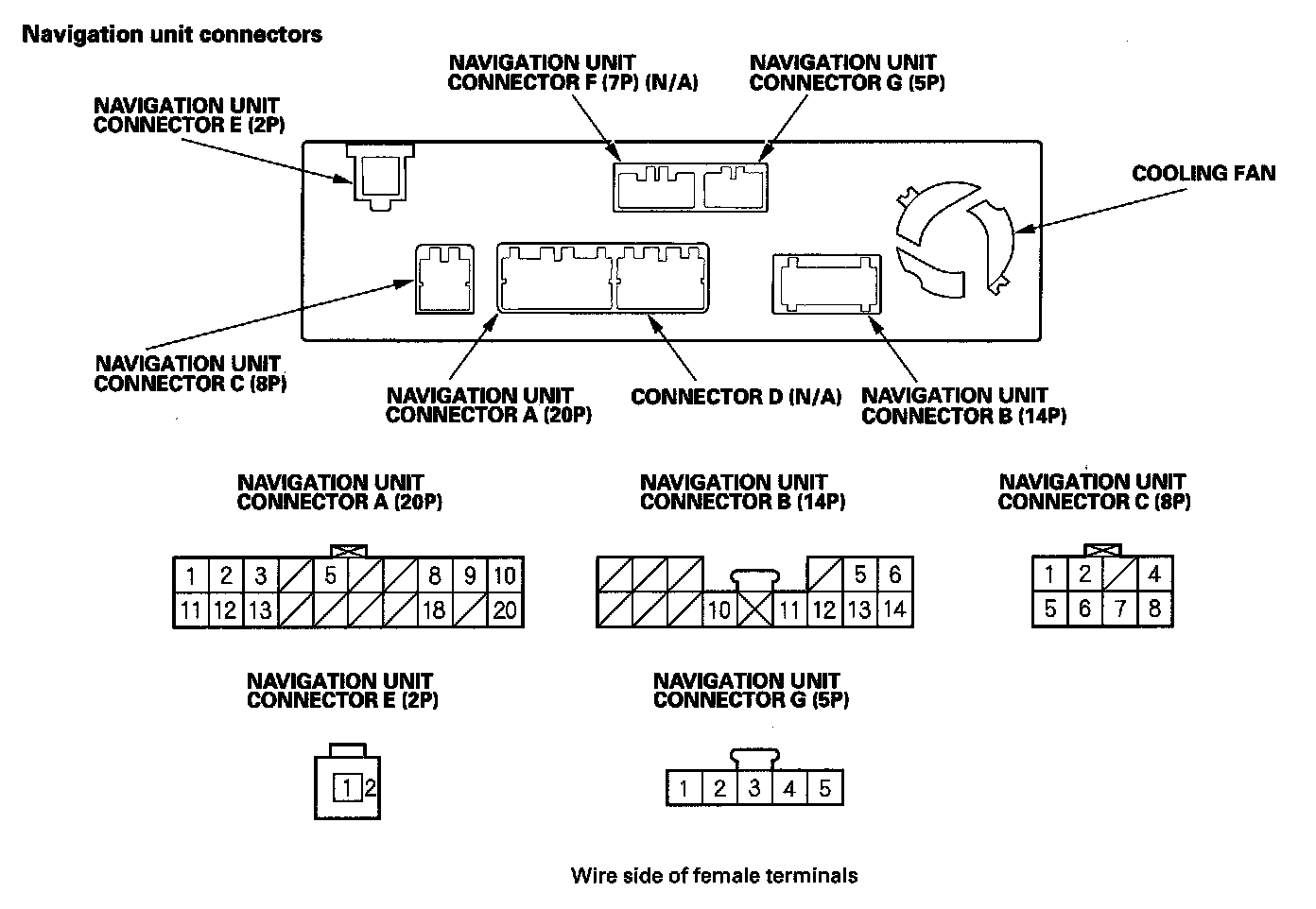

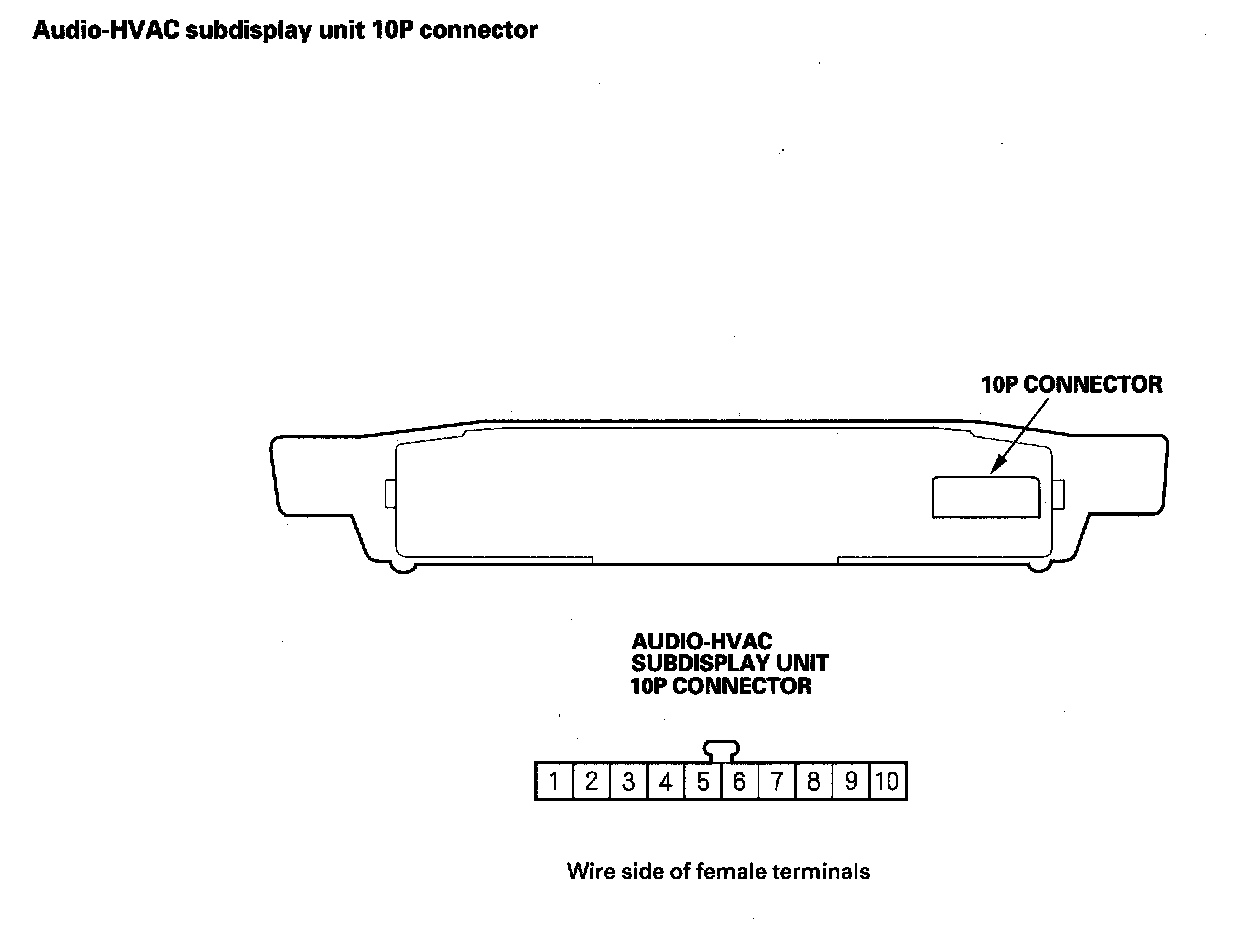

66. Navigation Service Check Connector (Navigation):
