Power Window Switch

191. Power Window Switch, Front Passenger's:



192. Power Window Switch, Left Rear:



193. Power Window Switch, Right Rear:

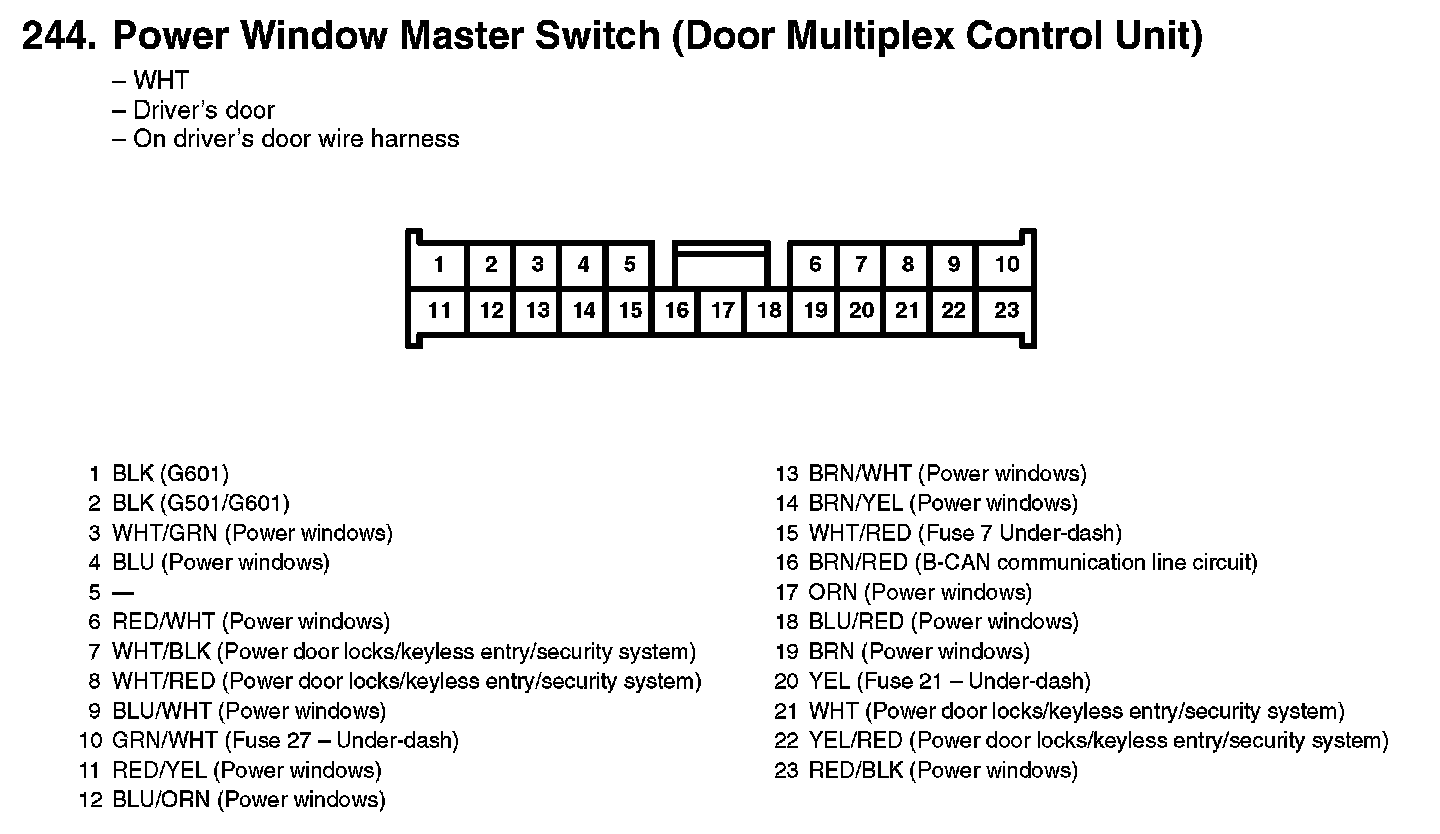

244. Power Window Master Switch (Door Multiplex Control Unit):
