Multiplex Integrated Control System Circuit Diagram

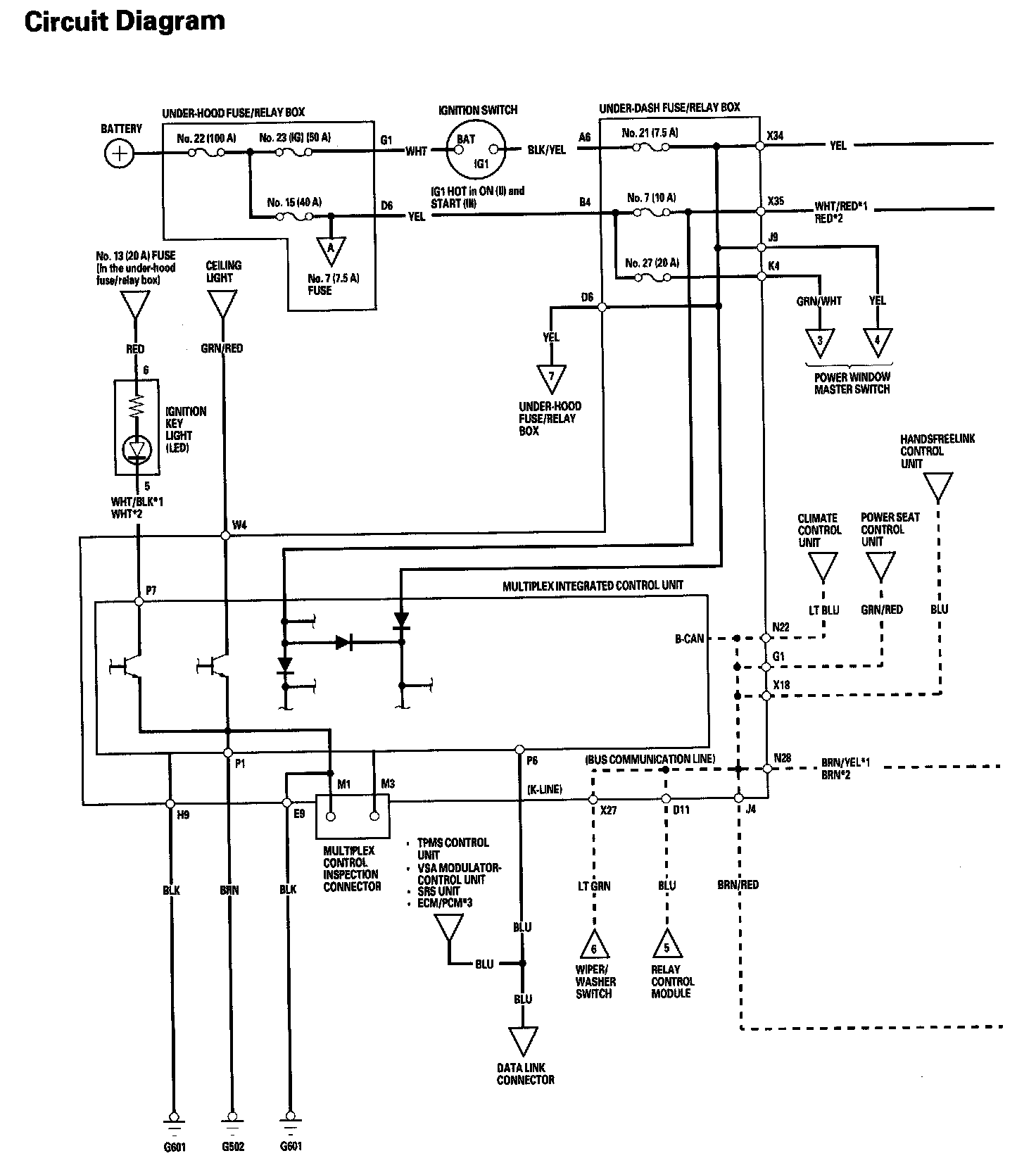

Multiplex Integrated Control System Circuit Diagram (Part 1):

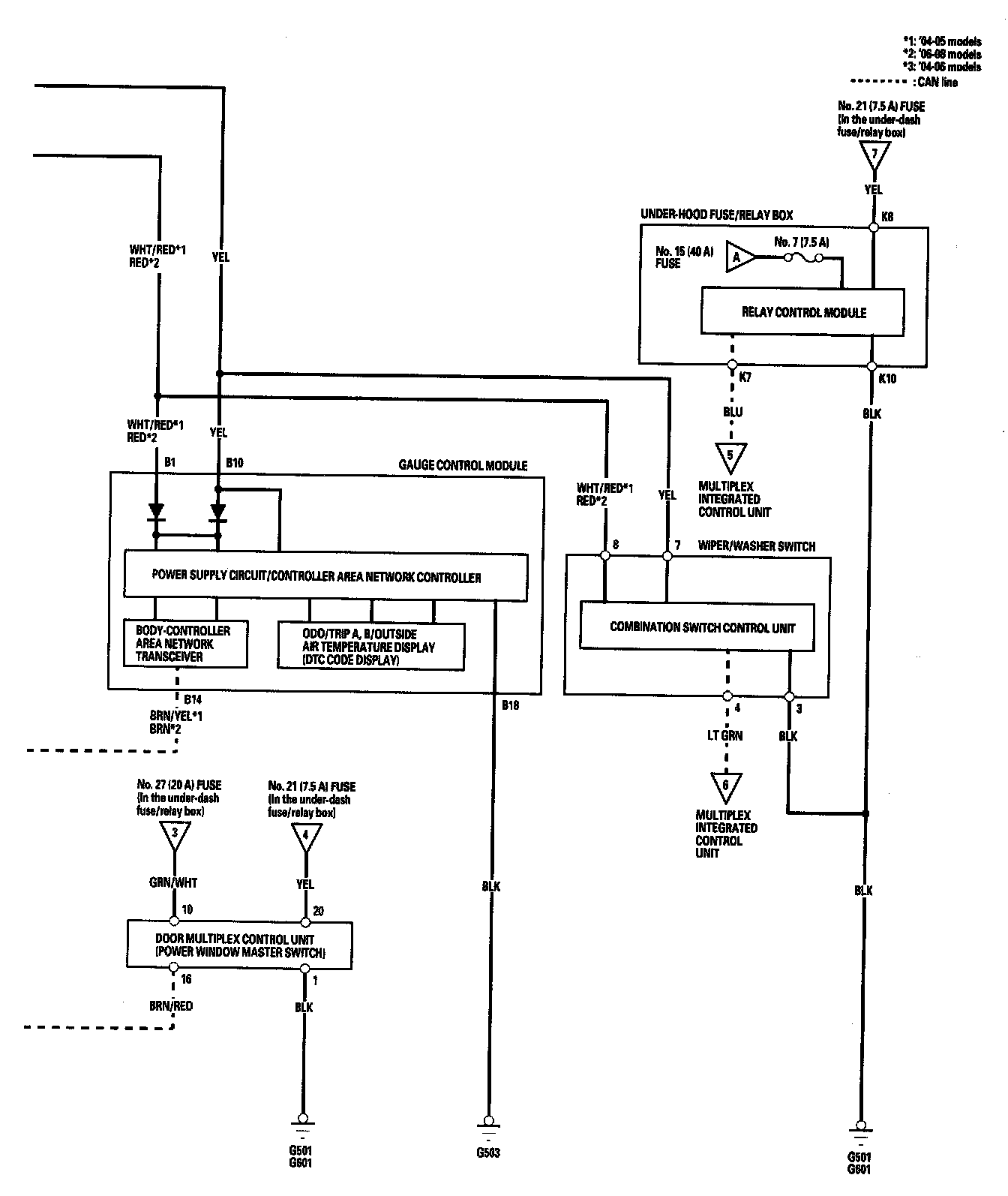

Multiplex Integrated Control System Circuit Diagram (Part 2):
