Information Bus: Locations

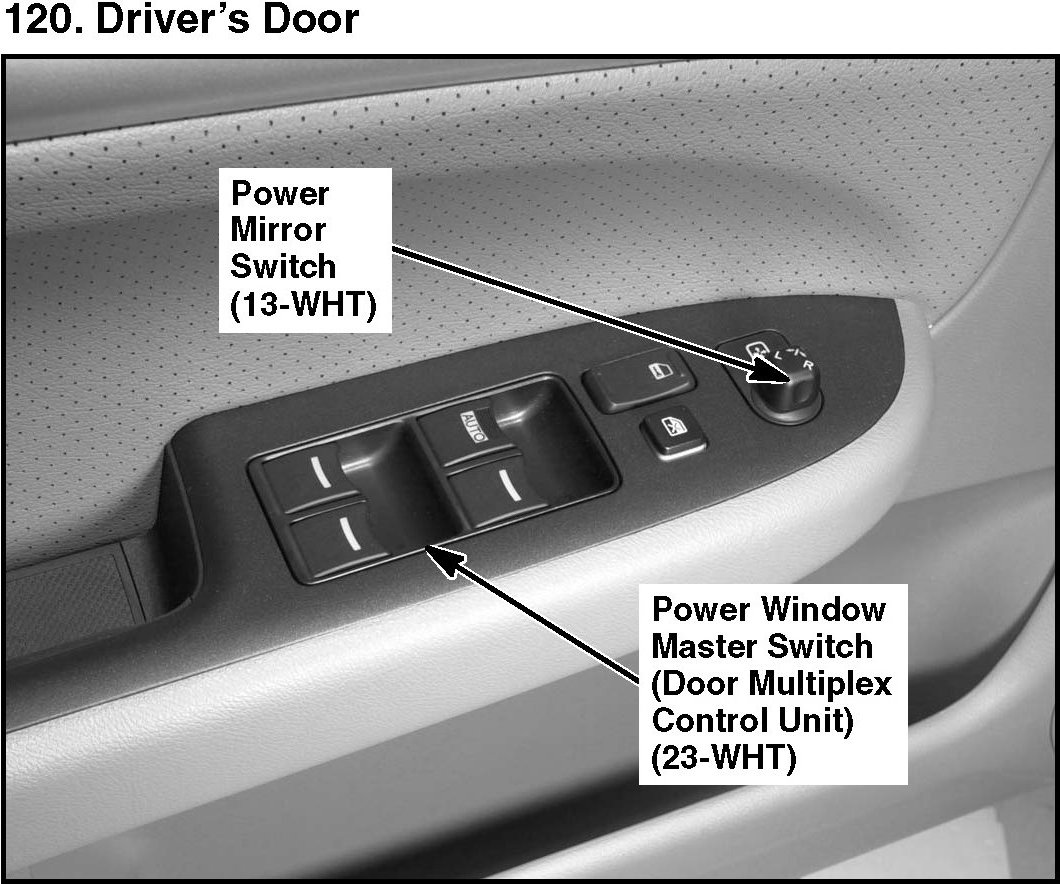

120. Driver's Door:

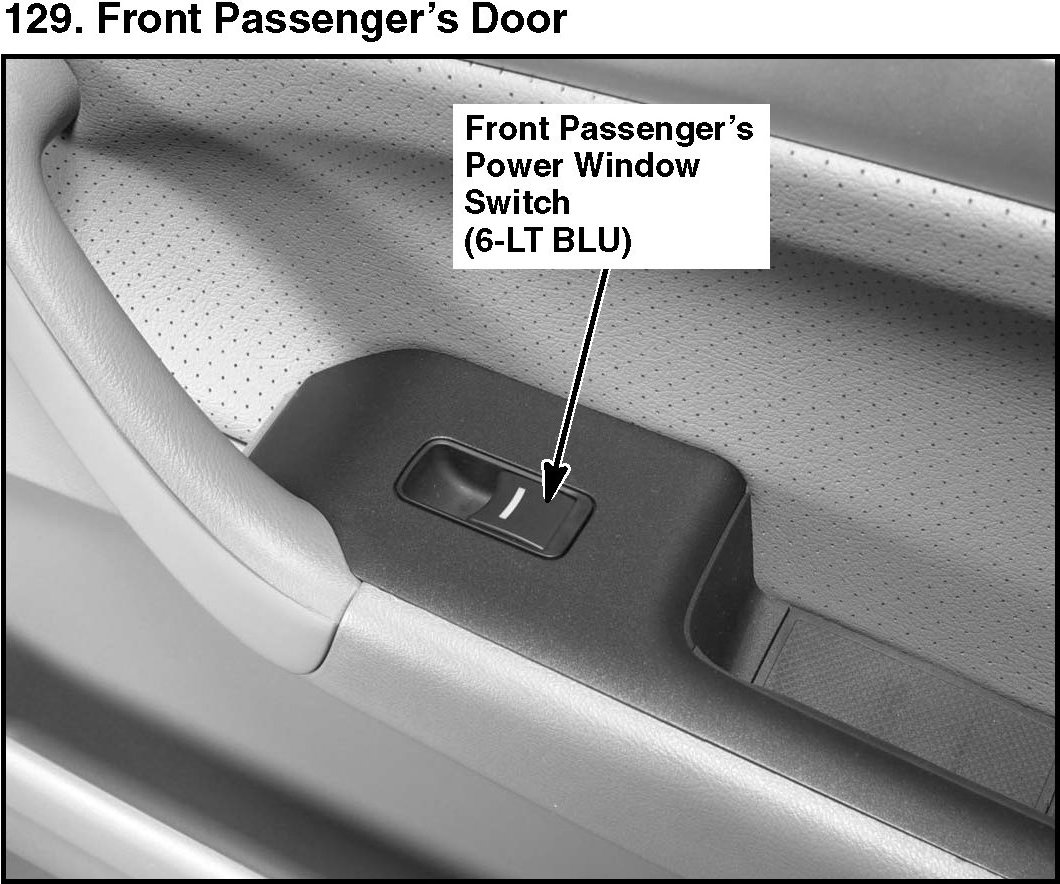

129. Front Passenger's Door:

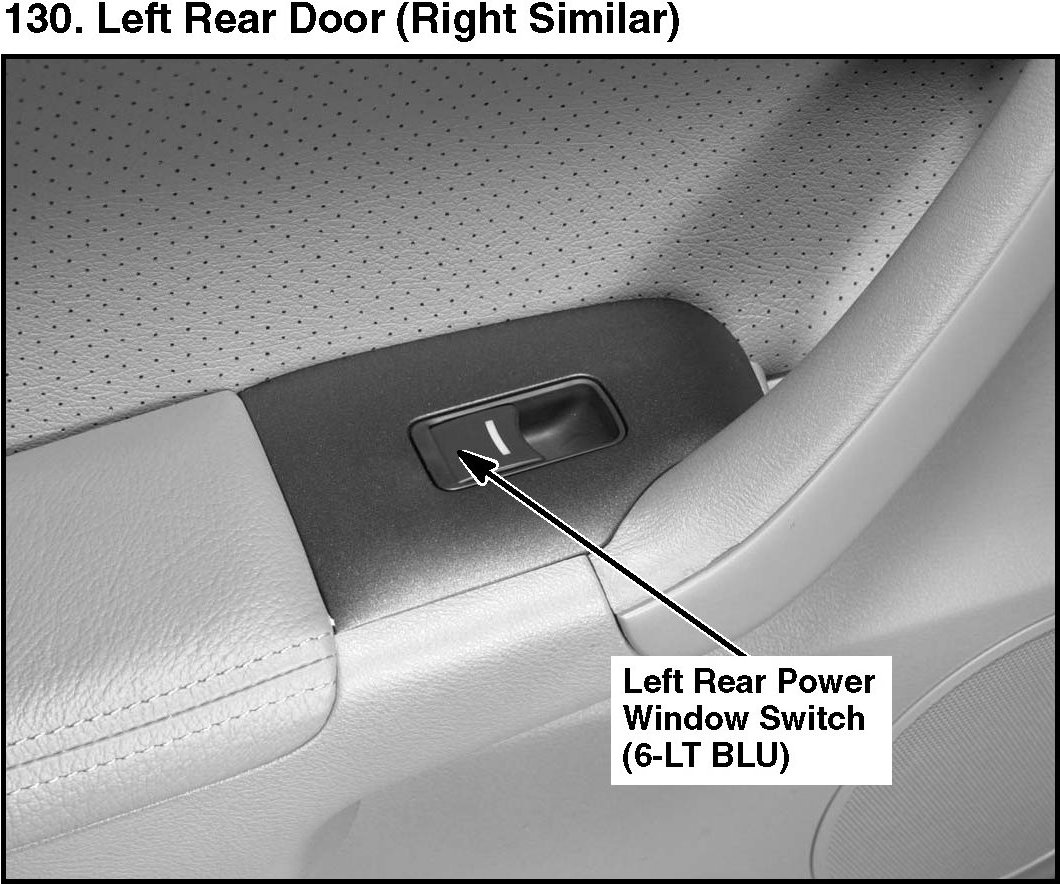

130. Left Rear Door (Right Similar):



Power Windows Component Location Index:

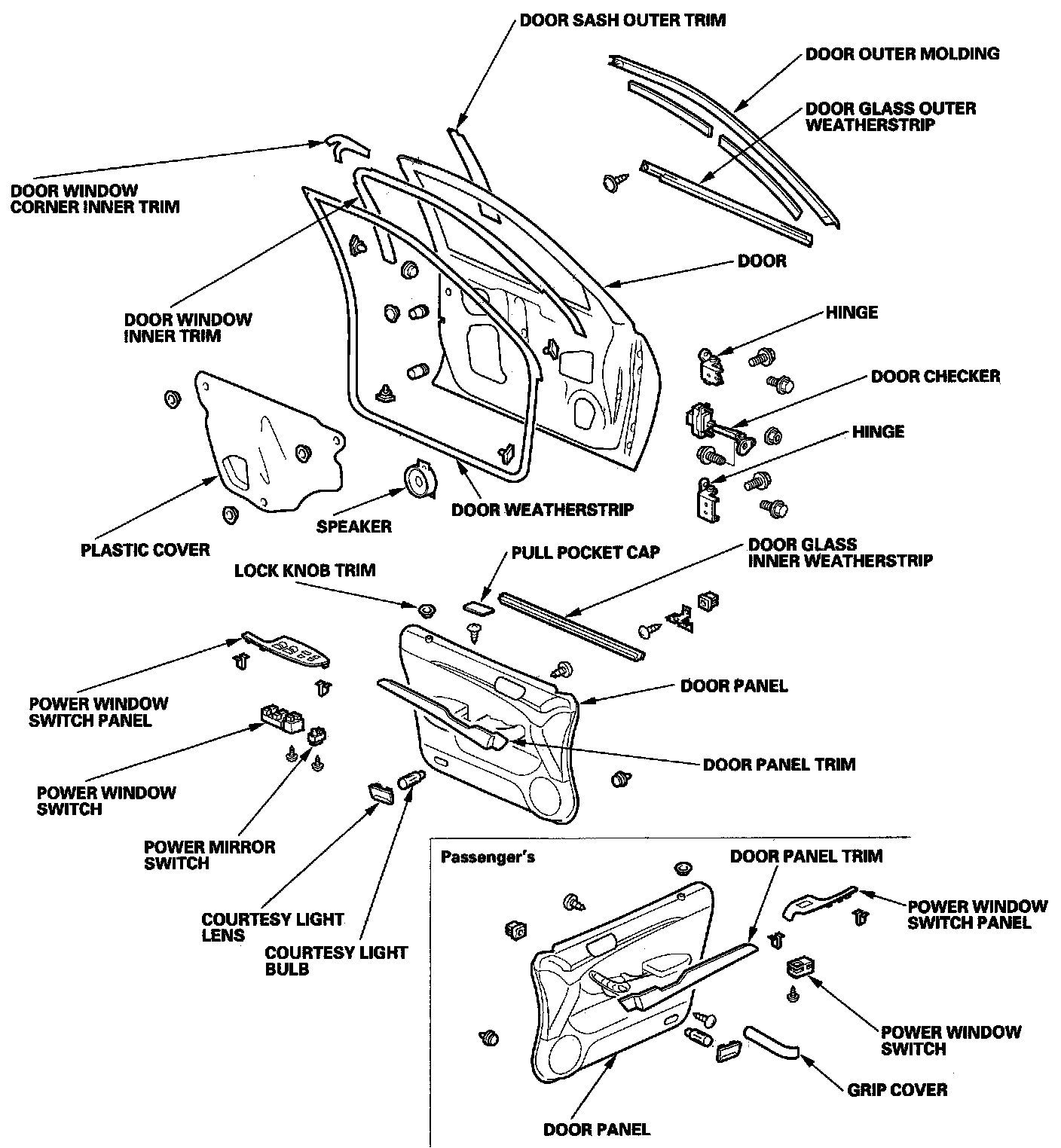

Front Door Component Location Index:

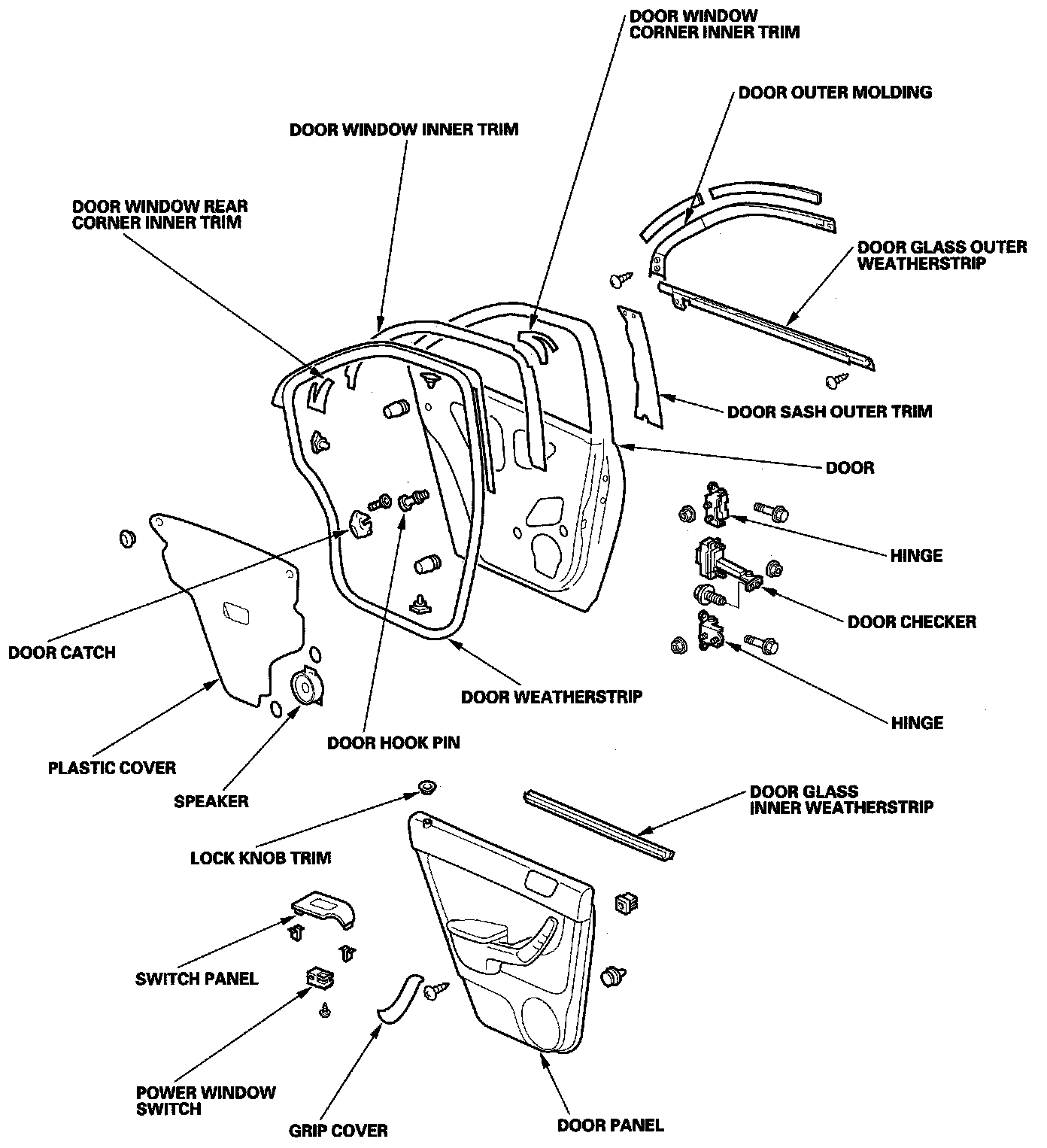

Rear Door Component Location Index:
