General Specifications

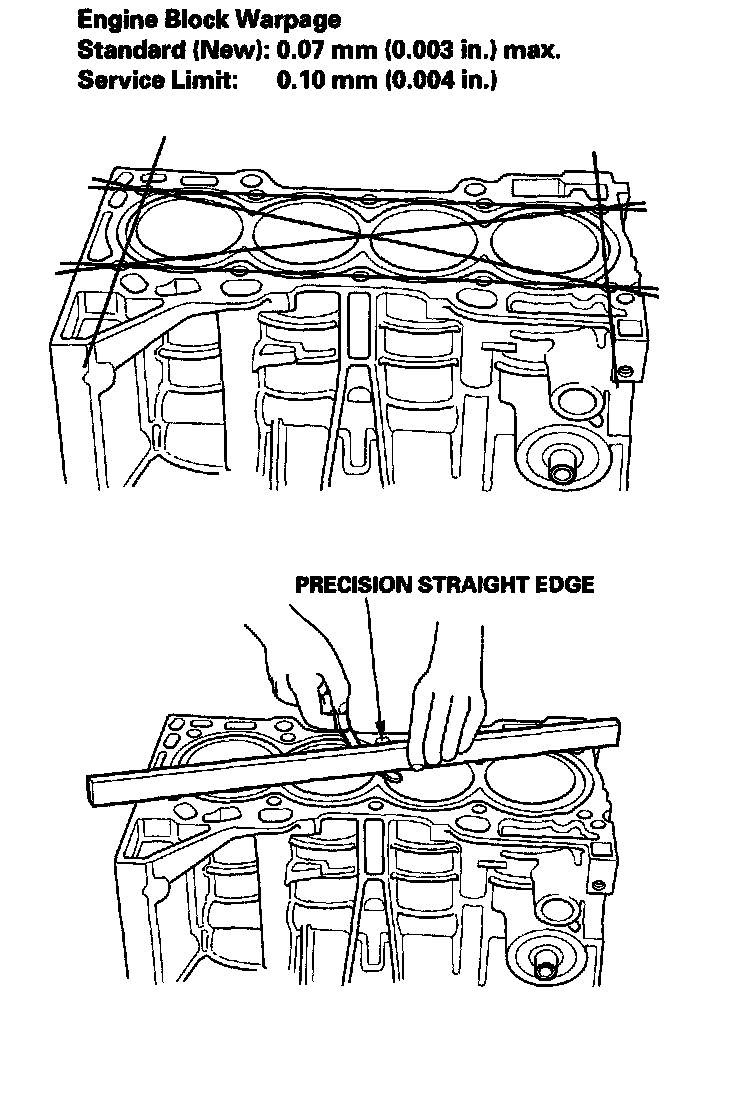

Surface Variation

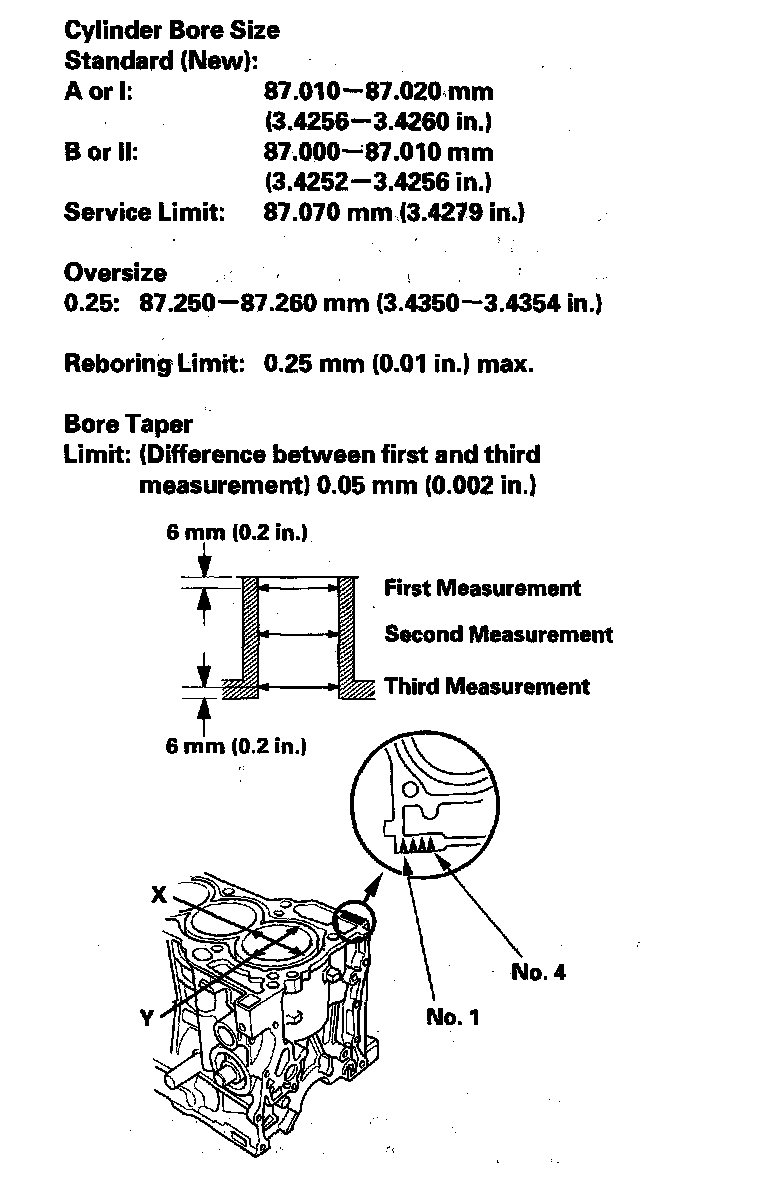

Cylinder Bore

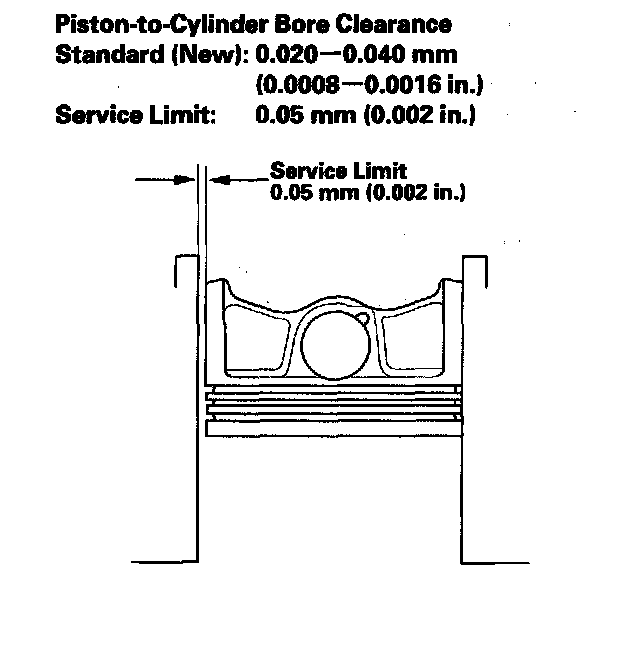

Cylinder-to-Piston Clearance

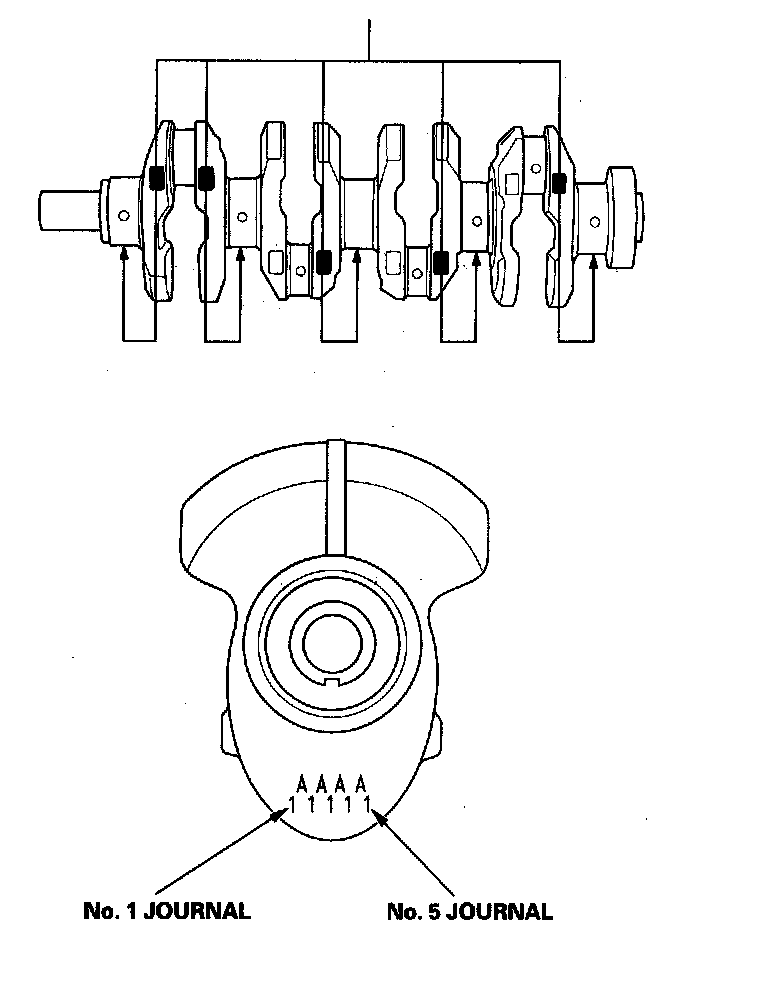

Crankshaft

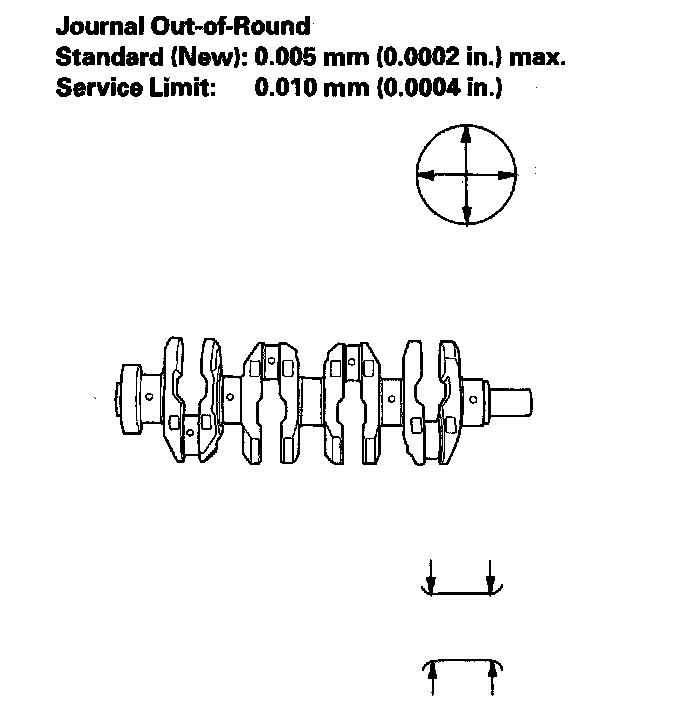

Journal Taper

Standard (New) 0.005 mm (0.0002 in.) max.

Service Limit 0.010 mm (0.0004 in.)

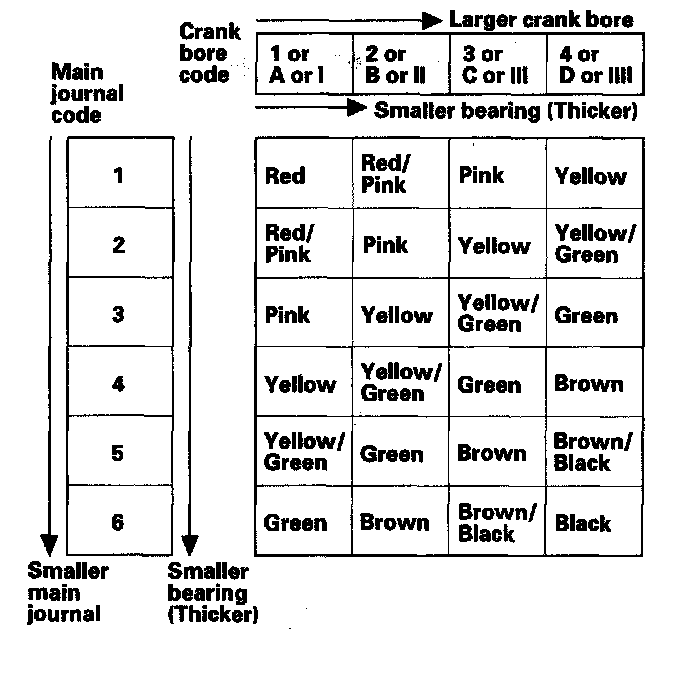

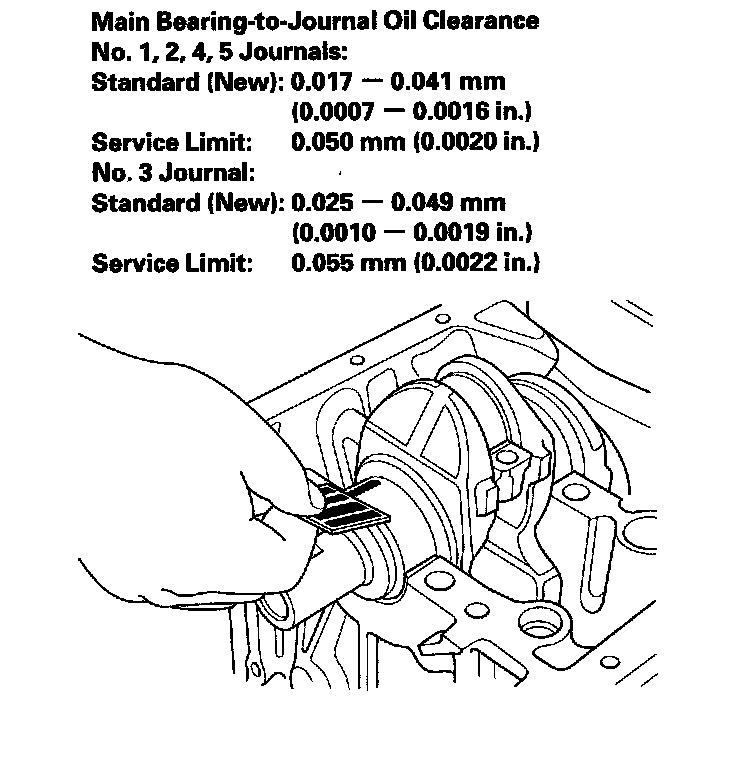

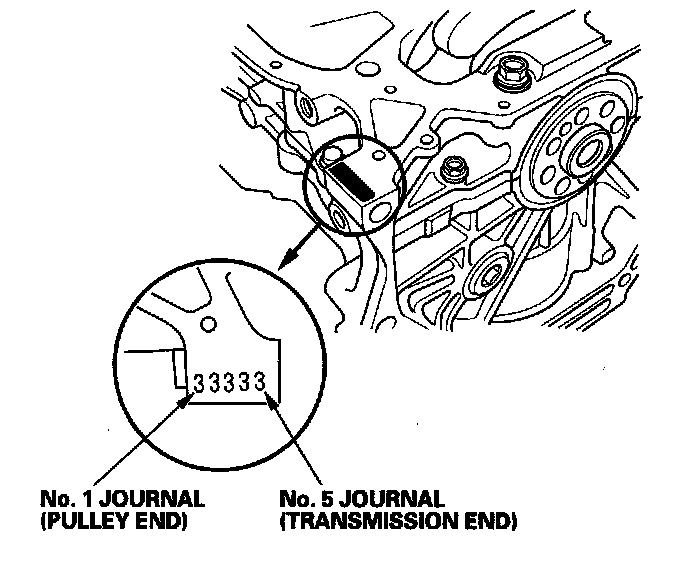

Main Bearing

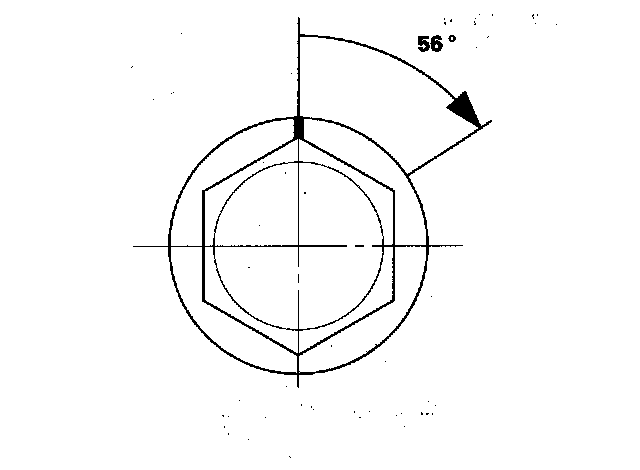

Torque 30 Nm (3.0 kgf-m, 22 lbf-ft) +56°

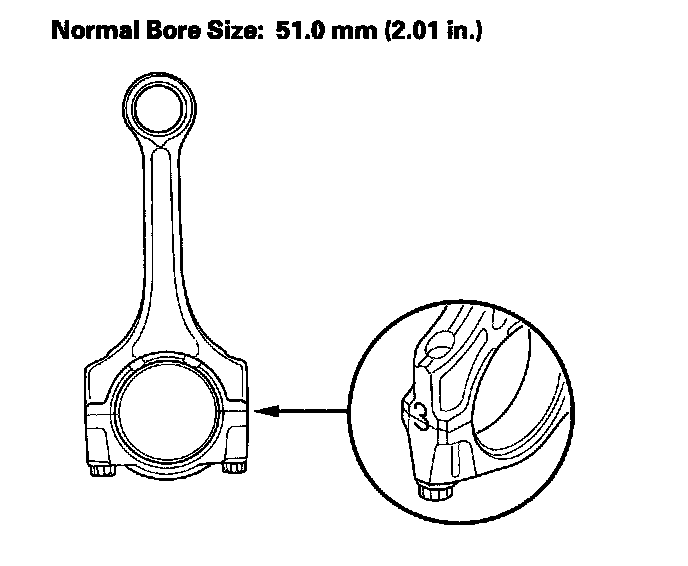

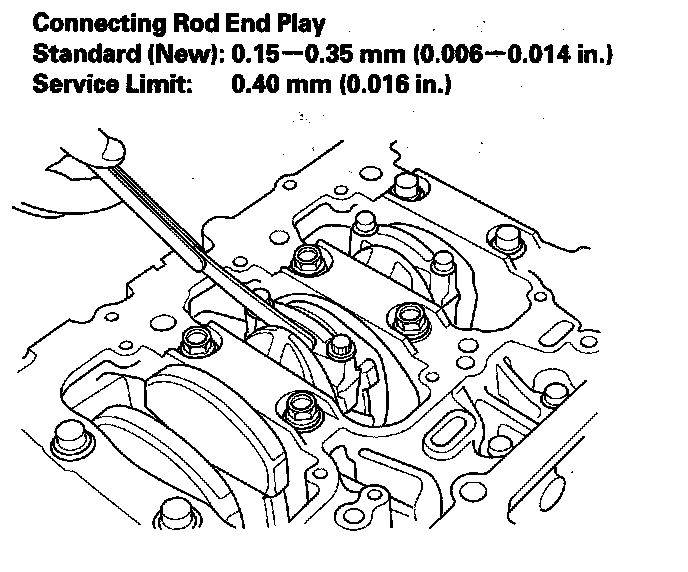

Connecting Rod

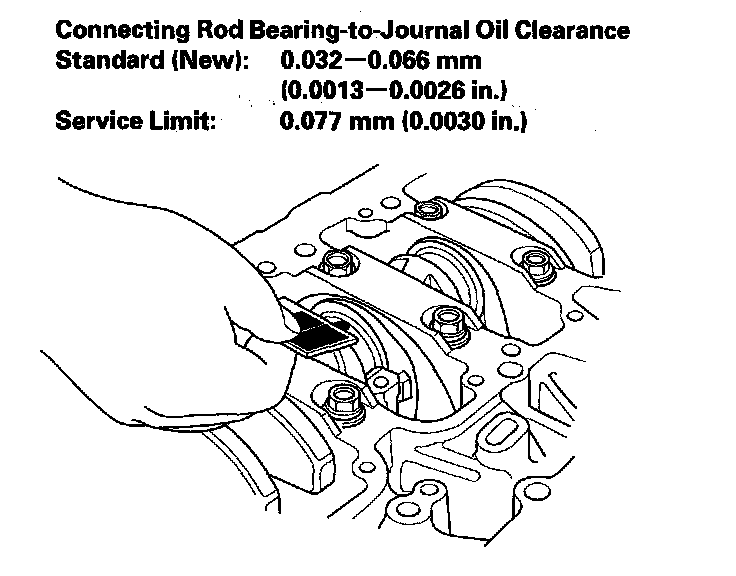

Connecting Rod Bearing

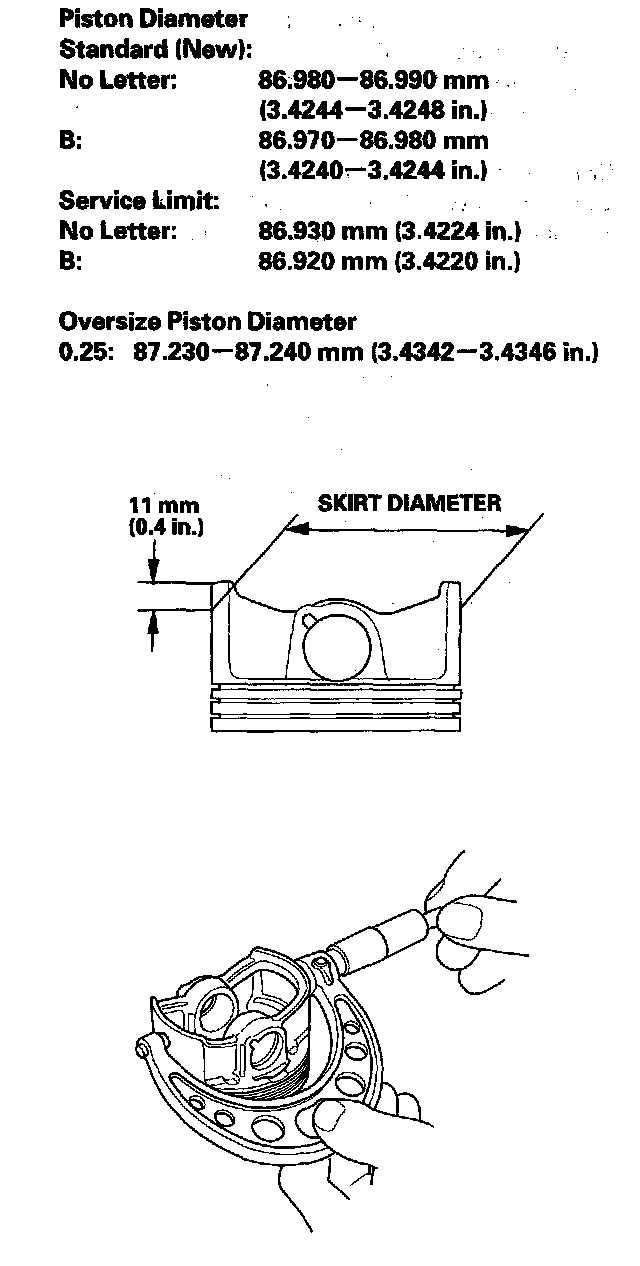

Piston

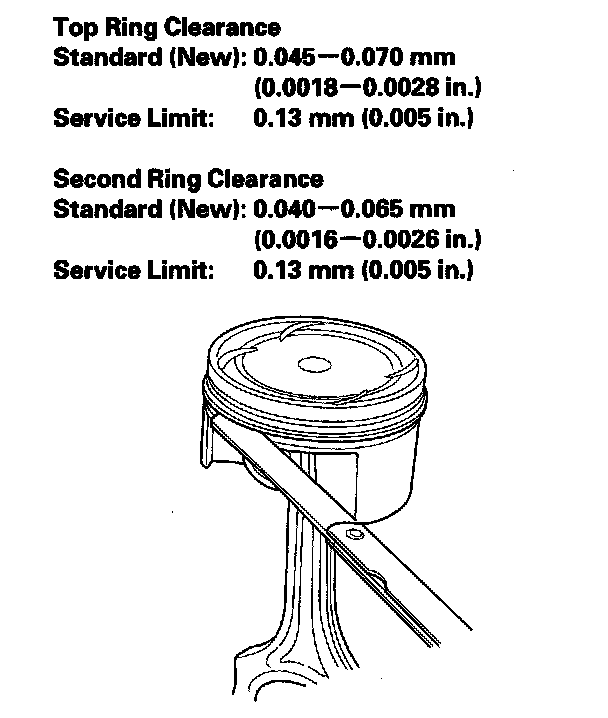

Piston Ring

Piston Ring End-Gap

Top Ring:

Standard (New) 0.20 - 0.35 mm (0.008 - 0.014 in.)
Service Limit 0.60 mm (0.024 in.)

Second Ring:

Standard (New) 0.50 - 0.65 mm (0.020 - 0.026 in.)
Service Limit 0.75 mm (0.030 in.)

Oil Ring:

Standard (New) 0.20 - 0.70 mm (0.008 - 0.028 in.)
Service Limit 0.80 mm (0.031 in.)





Crankshaft Pulley

Torque 50 Nm (5.0 kgf-m, 37 lbf-ft)

Tighten additional 90°
