Service Specifications

Drive Plate





Tighten the eight bolts in a crisscross pattern in two or more steps.

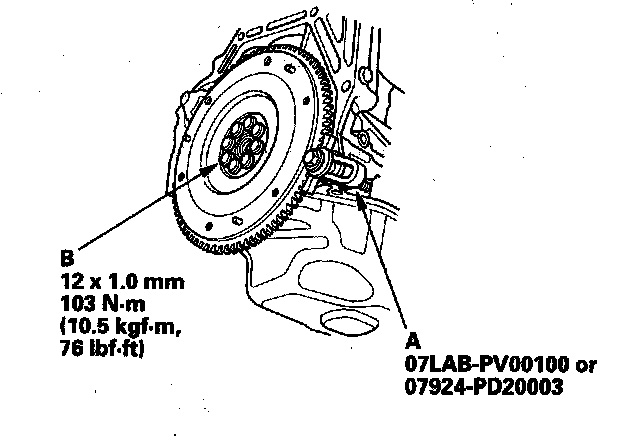

Flywheel





Torque the flywheel mounting bolts (B) in a crisscross pattern in several steps.
