Evaporator Temperature Sensor Replacement
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION )

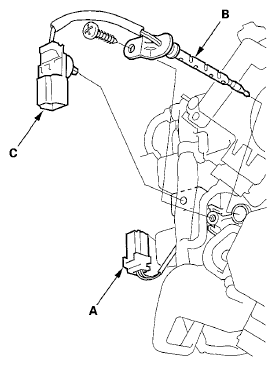

- Disconnect the 2P connector (A) from the evaporator temperature sensor (B) by pressing the lock tab toward the evaporator housing, then slide the male coupler down, and remove the connector clip (C) Remove the self-tapping screw and the evaporator temperature sensor
- Install the sensor in the reverse order of removal
