Passenger's Mode Control Motor Replacement: Removal

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Set the passenger's side climate control to the VENT position before removing the motor

Fig 1: Identifying Passenger's Side Climate Control VENT Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION )
Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION )
Remove the glove box frame (see step 4 on BLOWER UNIT REMOVAL/INSTALLATION )
Release the wire from its harness clip (A), then remove the self-tapping screws and the passenger's heater duct (B)

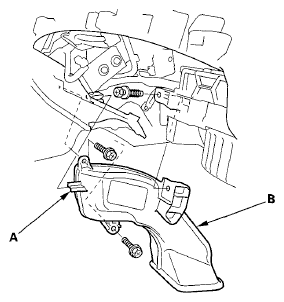

Fig 2: Identifying Passenger's Heater Duct And Harness Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 7P connector (A) from the passenger's mode control motor (B) Release the wire from its harness clip (C), then remove the self-tapping screws and the passenger's mode control motor from the heater unit

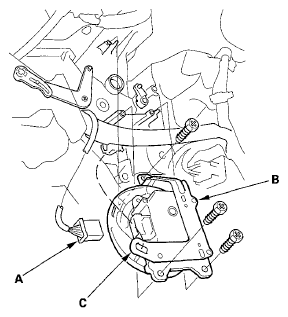

Fig 3: Identifying Passenger's Mode Control Motor And 7P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
