Climate Control Door Positions
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

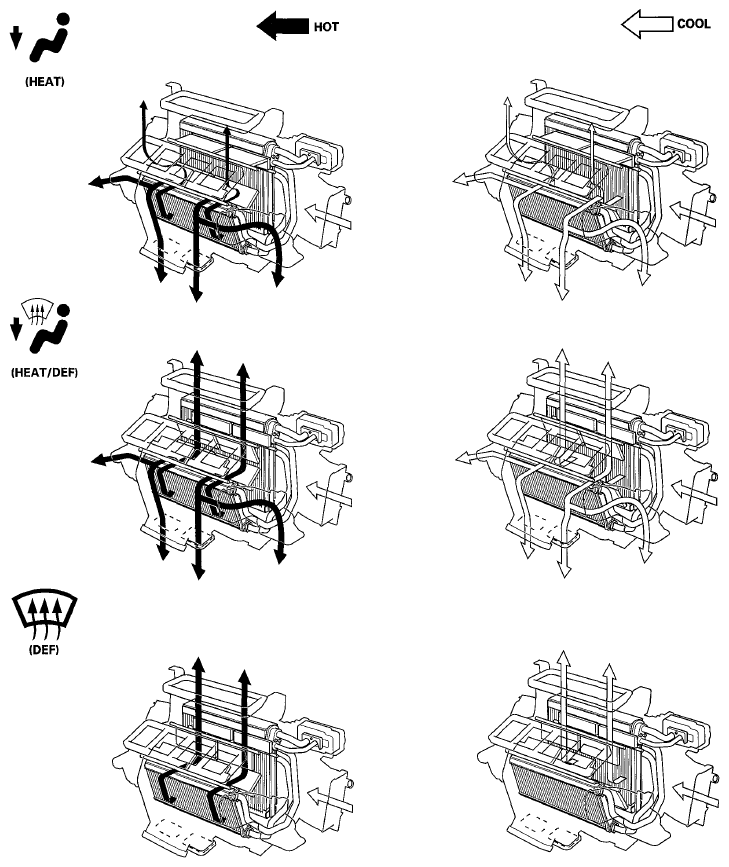

Fig 1: Air Flow Diagram - Climate Control Door Positions (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

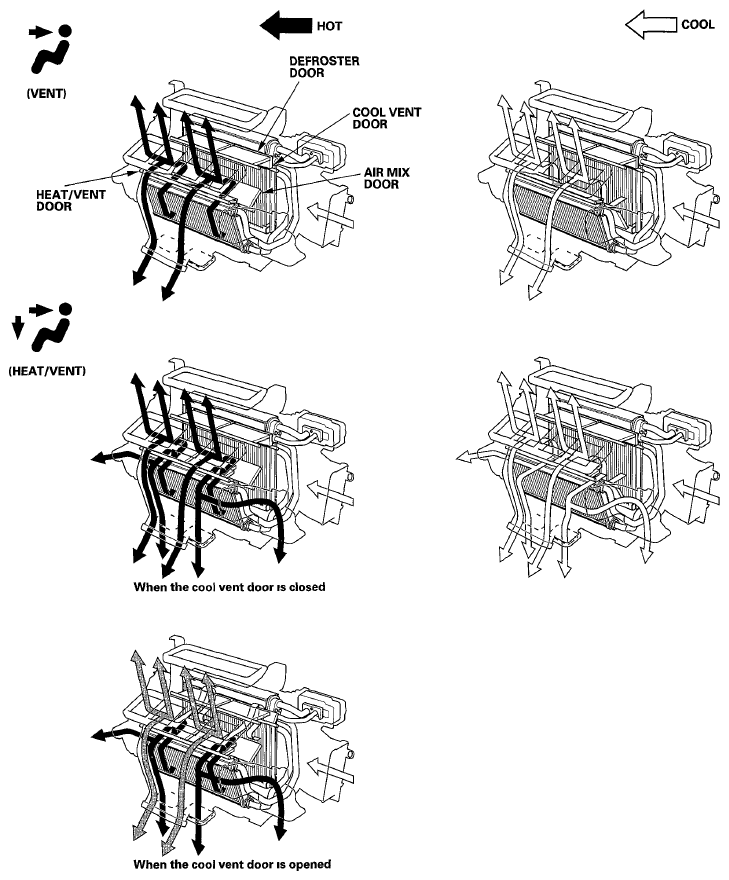

Fig 2: Air Flow Diagram - Climate Control Door Positions (2 Of 2)
