Audio-Navigation Unit Removal/Installation

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service

NOTE:
  • Put on gloves to protect your hands
  • Take care not to scratch the dashboard and related parts
  • Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage
  • Eject the disc before removing the audio-navigation unit to prevent damaging the CD/DVD player's load mechanism
  • If you are replacing the audio-navigation unit, write down the audio presets (if possible), then enter them into the new audio-navigation unit
  • If the HDD is OK, transfer it to the new audio-navigation unit
  • If the audio-navigation unit is replaced or, disconnected, a Map Matching must be done (see MAP MATCHING )
  1. Make sure you have the anti-theft codes for the navigation system
  2. Remove the center trim (see CENTER TRIM REMOVAL/INSTALLATION )
  3. Remove the dashboard center vent (see DASHBOARD CENTER VENT REMOVAL/INSTALLATION )
  4. Carefully remove the bolts, then pull the audio-navigation switch panel (A) out
    Fig 1: Identifying Audio-Navigation Switch Panel
    G05989852Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Bolt specifications: 5 x 0.8 mm, 4.4 N.m (0.45 kgf m, 3.2 lbf ft)

  5. Disconnect the connectors, and detach the clips (B)
  6. Remove the climate control switches (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION )
  7. Remove the bolts (A) and stays (B)

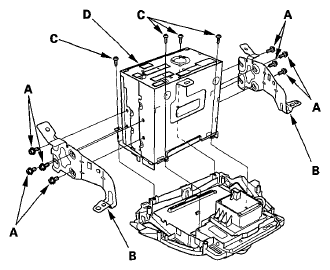

    Fig 2: Identifying Audio-Navigation Unit With Stays
    G05989853Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Bolt specifications: 5 x 0.8 mm, 3.7 N.m (0.38 kgf m, 2.7 lbf ft)

  8. Remove the screws (C) and audio-navigation unit (D).
    NOTE: Check any official Honda service website for more service information about patches for the navigation system. Apply any prescribed patches to the new audio-navigation unit.
  9. Install the audio-navigation unit in the reverse order of removal.
  10. Enter the new navigation anti-theft code.
  11. Park the vehicle outside, and do the GPS initialization (see GPS Initialization ).
  12. Give the new navigation anti-theft code to the client.
