Ignition Key Light Test

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column upper and lower covers (see STEERING COLUMN COVER REMOVAL/INSTALLATION )
  2. Disconnect the 6P connector (A)

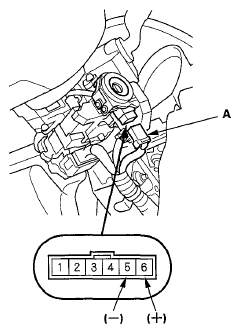

    Fig 1: Identifying 6P Connector
    G05988991Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. The LED should come on when power is connected to terminal No 6 and ground is connected to terminal No 5
  4. If the LED does not come on, replace the steering lock assembly (see STEERING LOCK REPLACEMENT )
