USB Adapter Unit Connector for Inputs and Outputs

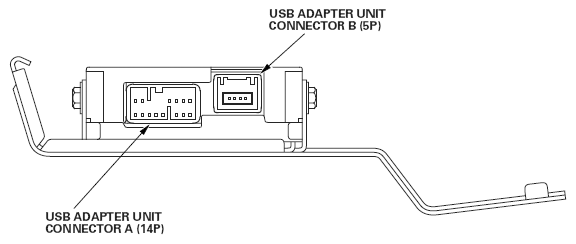

Fig 1: Identifying USB Adapter Unit Inputs And Outputs Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

USB ADAPTER UNIT CONNECTOR A (14P)

Fig 2: Identifying USB Adapter Unit Connector A (14P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE COLOR REFERENCE CHART

Cavity

Wire Color

Connect to

BLU

Navigation unit⁽²⁾, audio unit⁽³⁾, XM receiver (+B)

LT BLU

Navigation unit⁽²⁾, audio unit⁽³⁾, XM receiver (SYS ACC)

BRN⁽¹⁾

Shield for terminals No. 9 and No. 10 (GA-NET BUS SH)

GRY⁽¹⁾

Shield for terminals No. 5, No. 6, No. 13, and No. 14 (AUDIO SH)

WHT

Navigation unit⁽²⁾, audio unit⁽³⁾, XM receiver (AUDIO R+)

RED

Navigation unit⁽²⁾, audio unit⁽³⁾, XM receiver (AUDIO L+)

BLU

Navigation unit⁽²⁾, audio unit⁽³⁾, XM receiver (GA-NET BUS+)

A10

PNK

Navigation unit⁽²⁾, audio unit⁽³⁾, XM receiver (GA-NET BUS-)

A11

BLK

Navigation unit⁽²⁾, audio unit⁽³⁾, XM receiver (GND)

A13

BLK

Navigation unit⁽²⁾, audio unit⁽³⁾, XM receiver (AUDIO R-)

A14

GRN

Navigation unit, XM receiver (AUDIO L-)

⁽¹⁾	The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

⁽²⁾	With navigation

⁽³⁾	Without navigation

USB ADAPTER UNIT CONNECTOR B (5P)

Fig 3: Identifying USB Adapter Unit Connector B (5P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE COLOR REFERENCE CHART

Cavity	Wire Color	Connect to
B1	--	USB adapter (USB VBUS)
B2	--	USB adapter (USB DATA-)
B3	--	USB adapter (USB DATA+)
B4	--	USB adapter (USB GND)
B5	--	Shield for terminals No. 1, No. 2, No. 3, and No. 4 (USB SH)
