M/T model

Disconnect the 3P connector from the clutch pedal position switch.

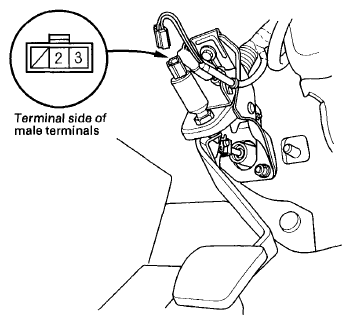

Fig 1: Identifying 3P Connector From Clutch Pedal Position Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals according to the table.
- If the continuity is not as specified, replace the clutch pedal position switch.
- If OK, install the clutch pedal position switch, and adjust the pedal height (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT ).
Fig 2: Clutch Pedal Position Switch Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
