Front Subframe Torque

NOTE:

After loosening the subframe mounting bolts, be sure to replace them with new ones.
When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.

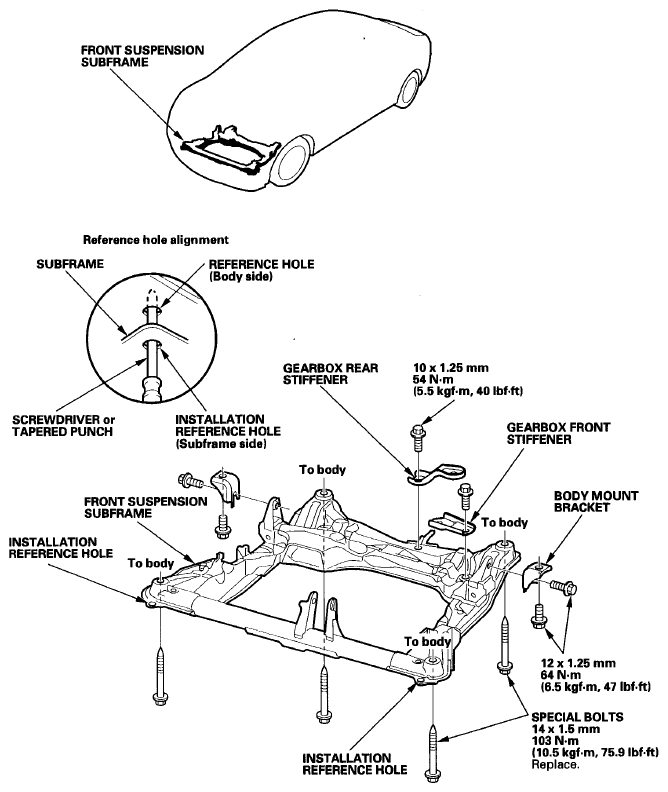

Fig 1: Front Subframe Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
