Horn Test/Replacement

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 1P connector (A) from the horn (B).

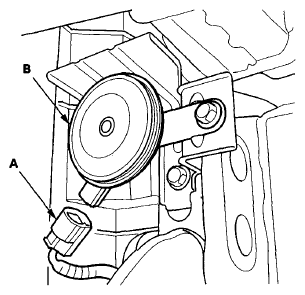

    Fig 1: Identifying 1P Connector And Horn
    G06269296Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the horn by connecting battery power to the terminal (A) and grounding the bracket (B). The horn should sound.
    Fig 2: Identifying Horn Connector Terminal And Grounding Bracket
    G06269297Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If it fails to sound, replace it.
