Driver's Mode Control Motor Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION )
Disconnect the 7P connector (A) from the driver's mode control motor (B) Remove the self-tapping screws and the driver's mode control motor from the heater unit

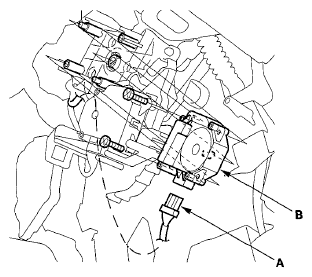

Fig 1: Identifying Driver's Mode Control Motor And 7P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal Make sure the pin on the motor is properly engaged with the linkage After installation, make sure the motor runs smoothly
