Sunlight Sensor Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center speaker lid (see FRONT CENTER SPEAKER )
Push out the sunlight sensor (A) from the speaker lid, then disconnect the connector (B) Be careful not to damage the sensor or the dashboard

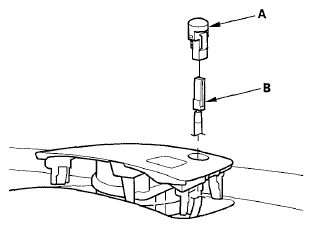

Fig 1: Identifying Sunlight Sensor From Speaker Lid
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal
