i-Dual Climate Control System

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

This system automatically controls the temperature and the air direction to the driver and passenger's side depending on the angle of the sun and the direction of the vehicle It calculates information such as date, time, longitude, and latitude from the navigation system, as well as the radiant strength of the sun from the sunlight sensor, to determine the appropriate mode position and temperature to be directed to each side

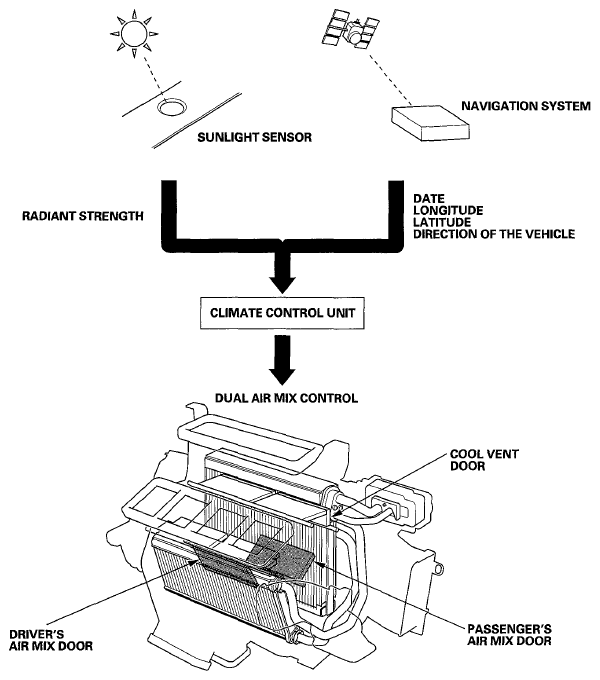

Fig 1: I-Dual Climate Control System Diagram
G05988553Courtesy of AMERICAN HONDA MOTOR CO., INC.

In the event that the navigation system malfunctions, or when driving in areas where the navigation cannot determine the vehicle position (non-coverage areas, tunnels, etc), the climate control system will operate the same as a vehicle without navigation
