Front Subframe Torque

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

If you remove the mounting bolts for any of the following items, always replace the bolts with new ones

Front suspension subframe
Front suspension subframe middle rubber mount
Front subframe front stiffener
Front suspension subframe rear bracket
Rear engine mounting base bracket

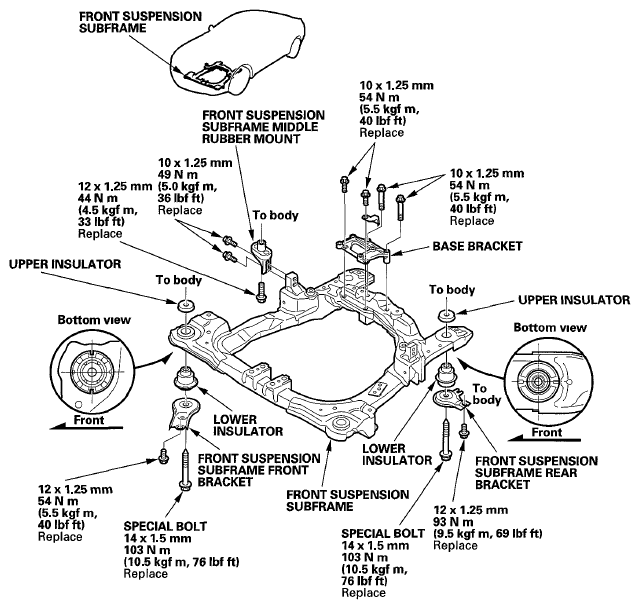

Fig 1: Front Subframe Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
