Diagnostic System Diagram
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

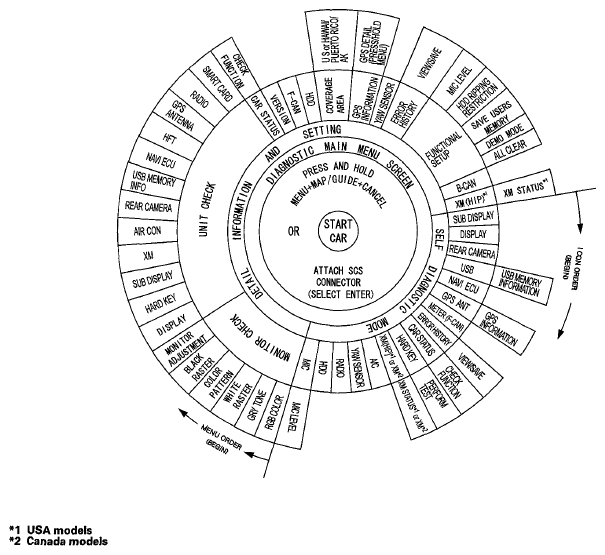

This diagram below shows all of the navigation diagnostic features available for system troubleshooting The diagram starts at the center, and works outward in layers
Access to the diagnostic features begins by starting the vehicle This is necessary so the system can check the other systems connected by various busses After starting the vehicle you can enter the diagnostic mode either by pressing and holding MENU, MAP/GUIDE, and CANCEL, or by connecting the 2-PIN SCS connector
The main menu screen allows 2 checking modes - one automatic, and one manual:
- The automatic diagnostic check starts when you select SELF DIAGNOSTIC MODE The system runs for several seconds, and reports any issues with Red icons Rotate the interface dial and select the icon you wish obtain the problem details
- The manual diagnostic check is selected from the main menu by selecting DETAIL INFORMATION AND SETTING The traditional diagnostic menu is displayed This allows you to obtain additional details as instructed in the troubleshooting procedures
NOTE:
Do not clear or change settings unless specified by either the Service Article troubleshooting procedures or by the factory
