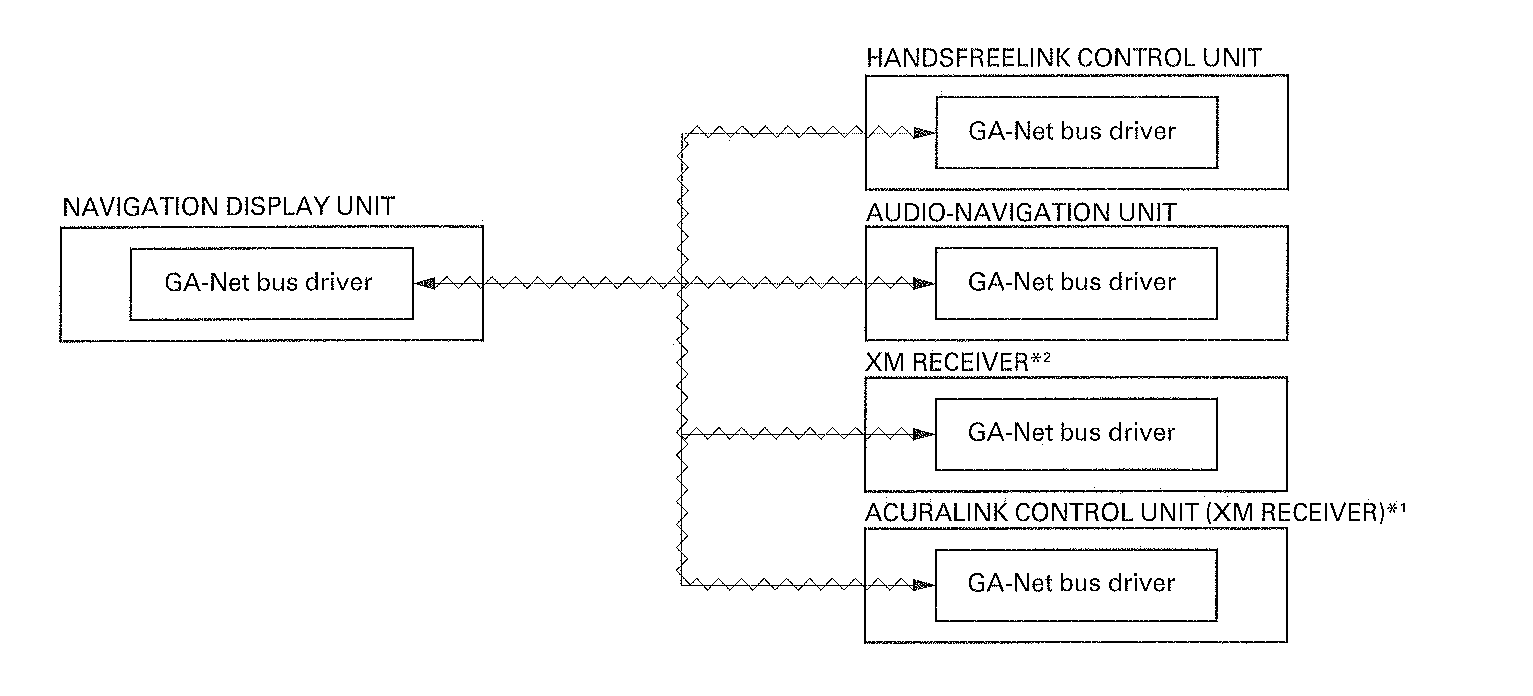

GA-Net Bus Configuration
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
The GA-Net bus passes audio and navigation commands throughout the navigation and audio components These commands include navigation audio/XM selections by voice, and XM station and music title names Because the entire bus is interconnected between components, an open or short in the GA-Net bus harness may cause any or all of these functions to become inoperative
