Microphone (HFL-navigation)

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Receives voice commands and transmits them to the audio-navigation unit or HandsFreeLink control unit The microphone unit consist of two microphones The microphones detects the driver's voice and passenger's voice separately

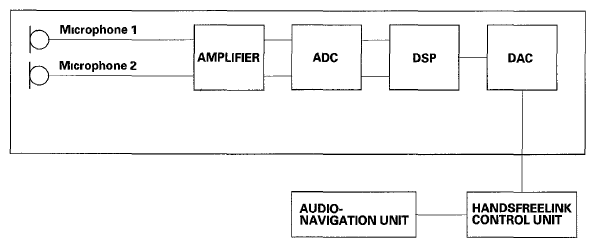

Fig 1: Microphone (HFL-Navigation) Communication Diagram
G05989700Courtesy of AMERICAN HONDA MOTOR CO., INC.
