Coverage Area

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

This screen allows the dealer to select the area that applies to the location of the vehicle The choices are US (continental) or Hawaii/Puerto Rico/AK The default is US Select the choice (the system may reboot), exit the diagnostic mode, turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode and restart the vehicle

NOTE: This function is designed to operate only when the vehicle is physically located in the coverage area you select

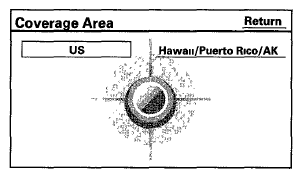

Fig 1: Screen Display - Coverage Area
G05989760Courtesy of AMERICAN HONDA MOTOR CO., INC.
