F-CAN System Link
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
F-CAN (Fast Controller Area Network) passes information between processors on the network For example, the F-CAN network passes trip computer information between the gauge and the audio-navigation unit for the trip computer function The F-CAN network uses a communication protocol that transmits data at 500 Kbps

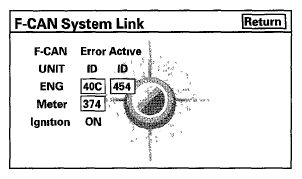

- If the diagnostic screen reads NG with the engine start/stop button to the ON mode, then diagnostic trouble codes (DTCs) for the F-CAN can be retrieved with the HDS (Honda Diagnostic System) The data displayed in the ID boxes is for factory use only
- For more details on troubleshooting the F-CAN, refer to the multiplex system
