Monitor Adjustment

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

This allows you to adjust the navigation display or the rearview camera guide line Select the item you want to adjust

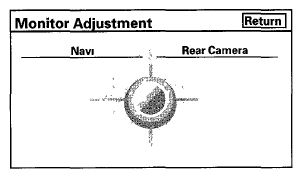

Fig 1: Screen Display - Monitor Adjustment
G05989736Courtesy of AMERICAN HONDA MOTOR CO., INC.
