Monitor Check: RGB
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

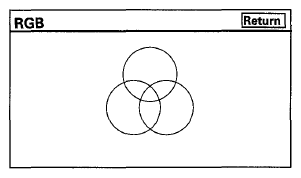

This screen verifies that the display unit is receiving the video (R, G, B and Composite sync) signals properly The three primary colors should all appear without distortion The combination of all three should produce a central white section If any of the colors are missing, troubleshoot for the color signal (see PICTURE IS MISSING A COLOR OR TONE OR IS AN ODD COLOR ). If the picture has lines in it or scrolls horizontally, or vertically, troubleshoot for a Composite sync problem (see PICTURE HAS LINES, ROLLS, OR IS BLURRY )
