Mode 1

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Start the vehicle When the globe screen appears, connect the SCS service connector (see FORCED STARTING OF DISPLAY ) to the navigation service connector located by passenger's under-dash fuse/relay box The screen changes to the System Links screen, and automatically begins running the self diagnostic See the System Links service information for more information

NOTE: When finished troubleshooting, make sure to remove the SCS service connector

USA models

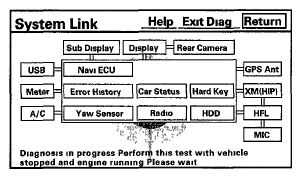

Fig 1: Screen Display - (USA Models) System Links

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Canada models

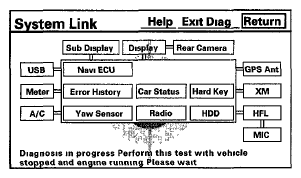

Fig 2: Screen Display - (Canada Models) System Links

Courtesy of AMERICAN HONDA MOTOR CO., INC.
