Mode 2
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
Start the vehicle, and at the disclaimer screen use the navigation display hard buttons

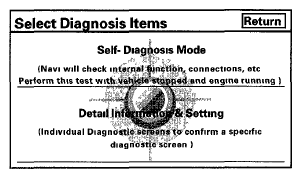

Press and hold the MAP/GUIDE, MENU, and CANCEL, buttons for about 3 seconds The display screen goes directly to the Select Diagnosis Items menu shown
- Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
- Detail Information&Setting (Can help you to manually diagnose the navigation system)
