Unit Check (Quick Check): Radio

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

This diagnostic screen checks the audio-navigation unit internal radio tuner and CD/DVD player If connection is NG, replace the audio-navigation unit

NOTE: If the XM link appears red, but the radio link appears green in the navigation system link, refer to audio system symptom troubleshooting

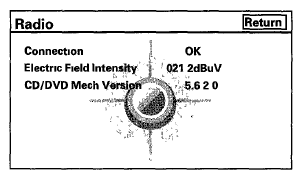

Fig 1: Screen Display - Radio Connection

Courtesy of AMERICAN HONDA MOTOR CO., INC.
