System Diagnostic Mode: Version
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

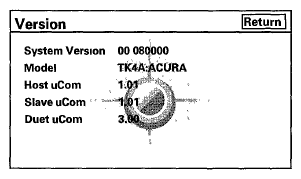

This screen displays the current version information for the navigation system software In addition, this screen allows the loading of updated software if directed by the factory, or instructed by a Service Bulletin Software may be loaded from a DVD
- System Version Displays the version of the audio/navigation software
- Model For this model, the field should begin with TK4A
- Host uCom, Slave uCom, and Duet uCom are all for factory use
Check any official Honda service website for more service information about the navigation system
