XM Status

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

You can check the XM status in this screen

XM STATUS

Items	Condition Indicated
XM reception	Receiving Check Antenna No Signal Loading Expired
Traffic Signal Reception	Receiving Check Antenna No Signal Loading Expired
Traffic Indicator	TRF (green icon) Traffic information is available TRF (white icon) Flow or incident data is not available TRF (red icon) No traffic available (flow and incident)
Traffic Data	OK Invalid
Traffic Last Update	Last update time and date indicated
Weather Signal Reception	Receiving Check Antenna No Signal Loading Expired
Weather Data	OK Invalid
Weather Last Update	Last update time and date indicated

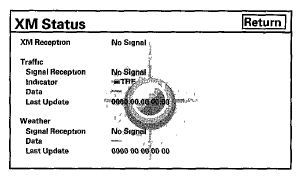

Fig 1: Screen Display - XM Status

Courtesy of AMERICAN HONDA MOTOR CO., INC.
