Cruise Control Combination Switch Test/Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service

Remove the steering wheel (see STEERING WHEEL REMOVAL ).
Remove the steering wheel rear cover (see STEERING WHEEL REMOVAL ).
Disconnect the cable real subharness connector (A), then remove the steering wheel trim/cruise control combination switch (B).

Fig 1: Identifying Cable Real Subharness Connector And Steering Wheel Trim/Cruise Control Combination Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.
- If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the steering wheel trim/cruise control combination switch.

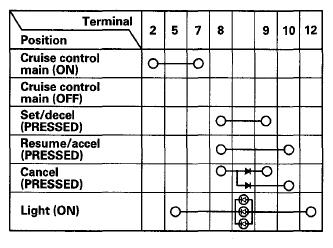

  Fig 2: Terminals Continuity Chart
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
