Voice Control Switch Test
WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the voice control switch (see Voice Control Switch Replacement ).

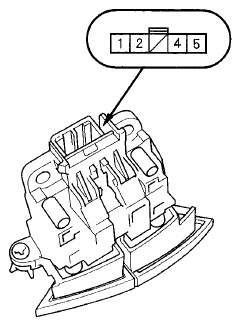

- Measure the resistance between the No. 2 and No. 4 terminals in each switch position according to the table.RESISTANCE SPECIFICATION
Position Resistance OFF About 10 k Ω TALK About 2.9 k Ω BACK About 680 Ω - If the resistance is not as specified, replace the voice control switch (see Voice Control Switch Replacement ).
- Use a diode tester between the terminals in each switch position according to the table.TERMINAL REFERENCE
Terminal 1 2 ◦- → -◦ - If the diode test is not as specified, replace the switch (see Voice Control Switch Replacement ).
