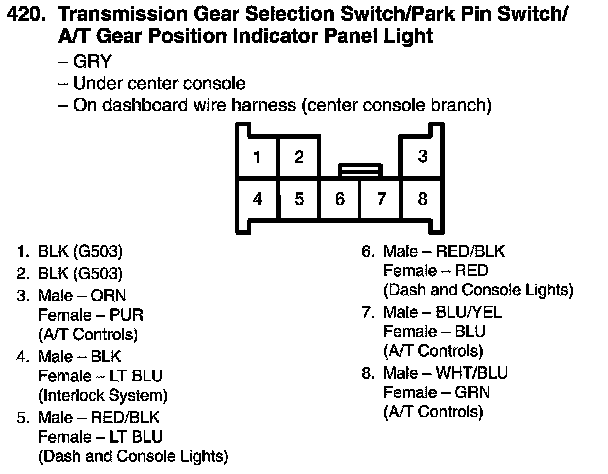

Transmission Gear Selection Switch/Park Pin Switch/A/T Gear Position Indicator Panel Light Connector View
