RFC Unit Replacement

RFC Unit Replacement

1. Remove the grille cover. Upper Grille Cover Replacement

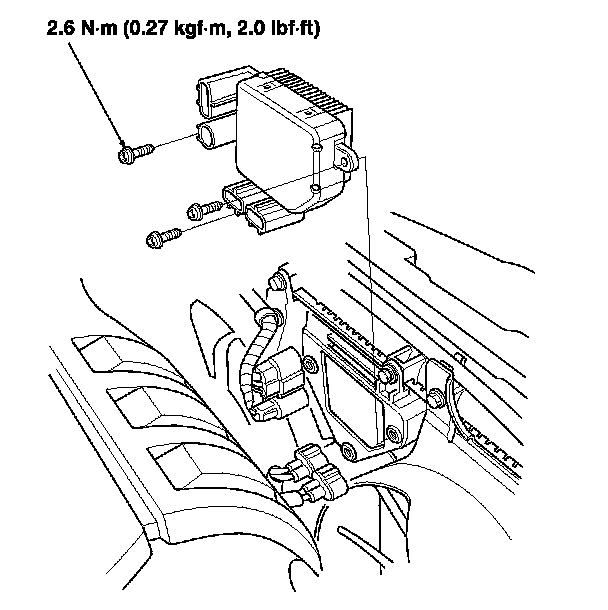

2. Disconnect the connectors from the radiator fan control (RFC) unit, then remove the RFC unit.
NOTE: When removing the RFC unit mounting screws take care not to damage the screw heads.






3. Install the RFC unit in the reverse order of removal.
