Driving Position Memory System (DPMS) Power Seat Control Unit Input Test

Driving Position Memory System (DPMS) Power Seat Control Unit Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control system first using B-CAN System Diagnosis Test Mode A. Troubleshooting - B-CAN System Diagnosis Test Mode A

1. Turn the ignition switch to LOCK (0).

2. Remove the driver's seat. Front Seat Removal/Installation
NOTE: Be careful not to scratch the interior trim.

3. Disconnect the 40P connector (A) and 18P connector (B) from the power seat control unit (C).

4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

- If the terminals look OK, go to step 5.

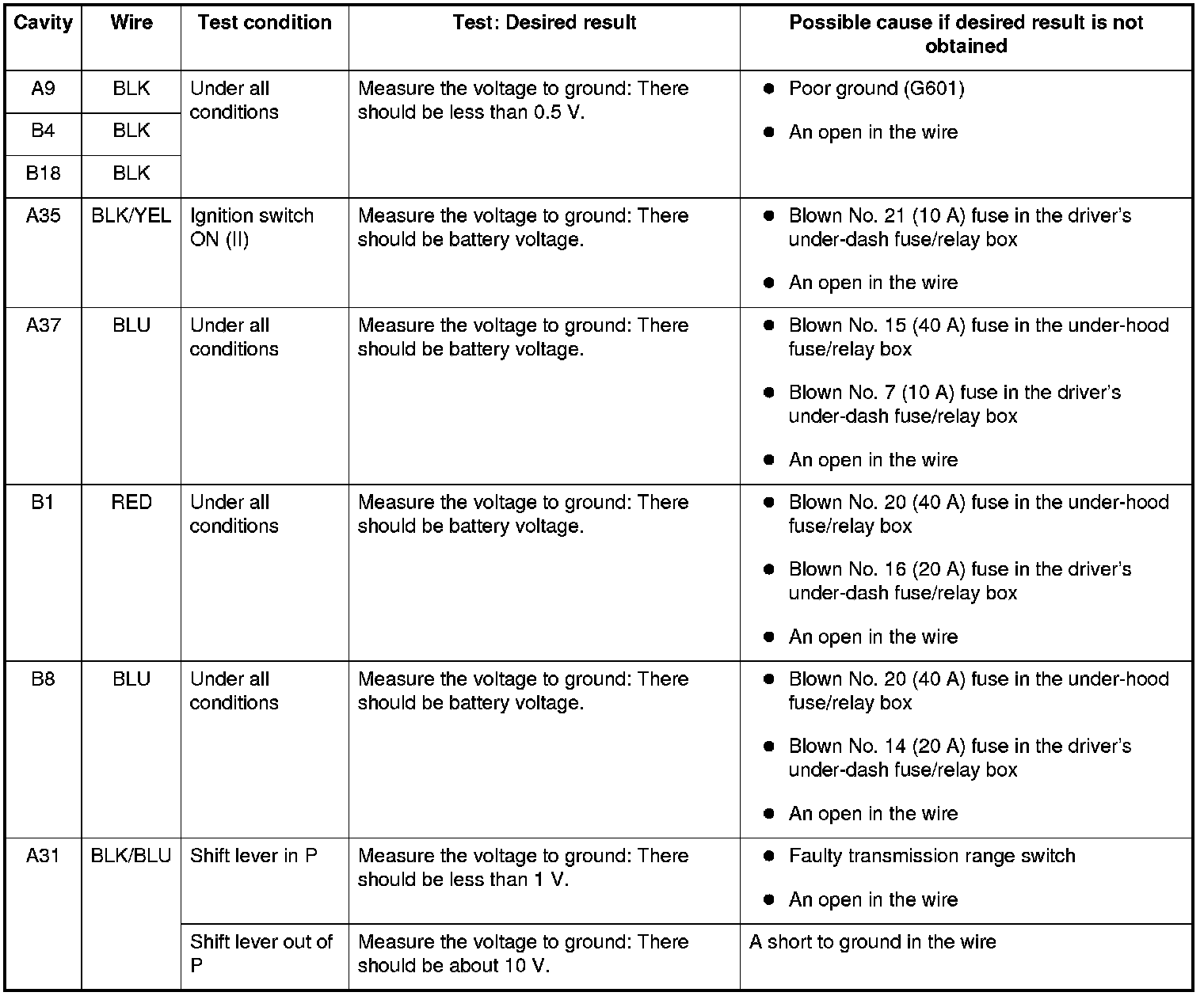

5. With the connectors still disconnected, do the input test at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 6.





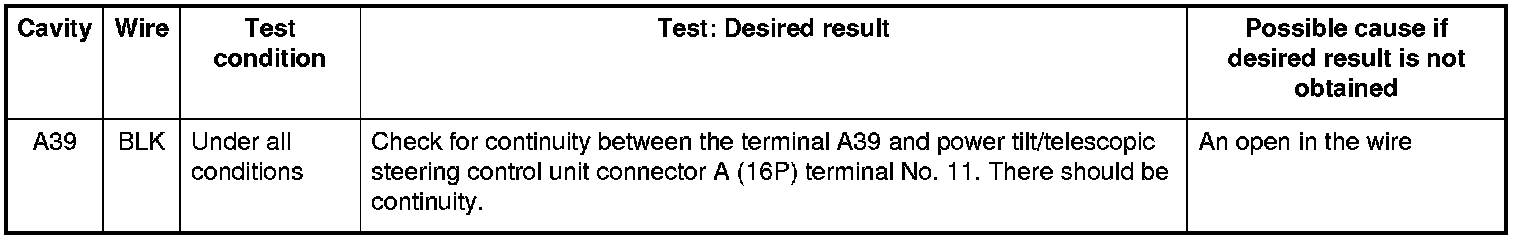

6. Reconnect the connectors to the power seat control unit, and do these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, the control unit must be faulty; replace it.
