Splash Guard: Service and Repair

Splash Shield Replacement

Special Tools Required

- Push pin puller 07AAC-SJAA100
NOTE: Take care not to scratch the body.

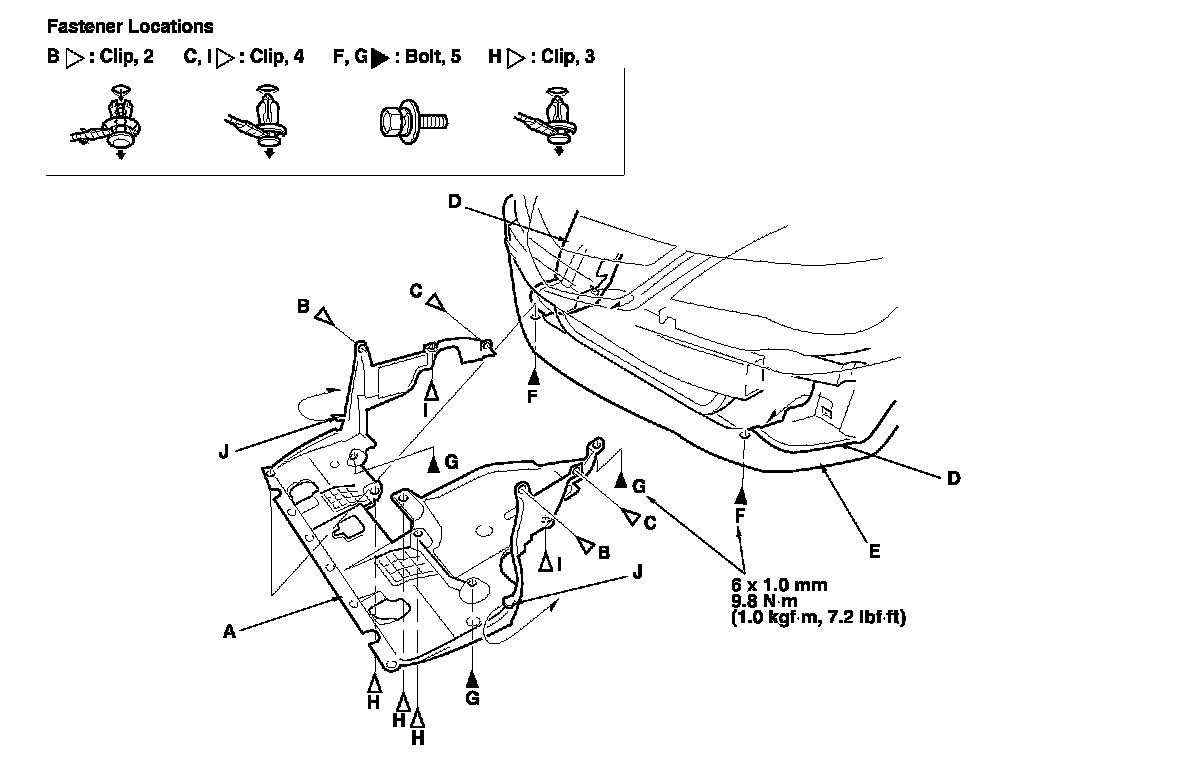

1. Remove the splash shield (A).
-1 Remove the clips (B, C) that secure the front inner fender (D) and the splash shield to the body.
-2 From under the front bumper (E), remove the bolts (F) (with engine undercover).
-3 From under the body, remove the bolts (G) and the clips (H, I).
-4 Release the hooks (J) of the splash shield, then pull the splash shield out.

2. Install the splash shield in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
