Alarm Module, (Vehicle Antitheft)
>>
Imoes Unit Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

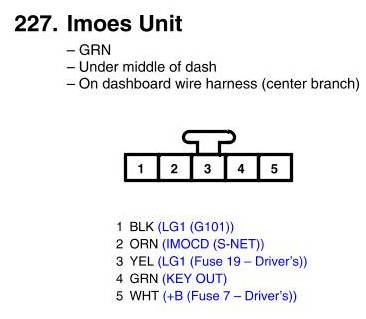

Imoes Unit Connector View
