Home >> Acura >> 2009 >> RL V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> PCM Inputs And Outputs At Connector D

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

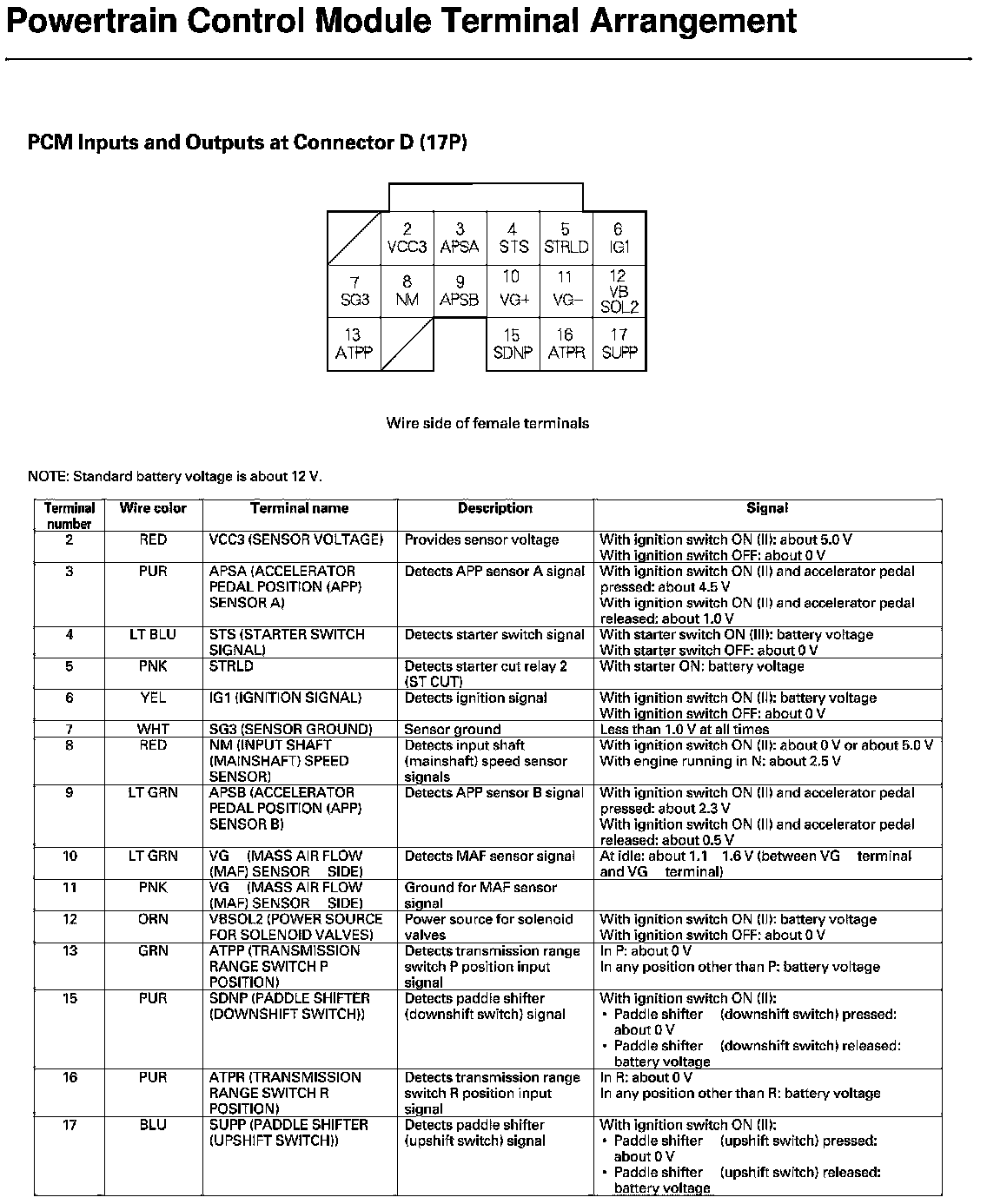

PCM Inputs And Outputs At Connector D
