Knock Sensor: Service and Repair

Knock Sensor Replacement

1. Remove the intake manifold. Intake Manifold Removal and Installation

2. Remove the injector base. Injector Base Removal and Installation

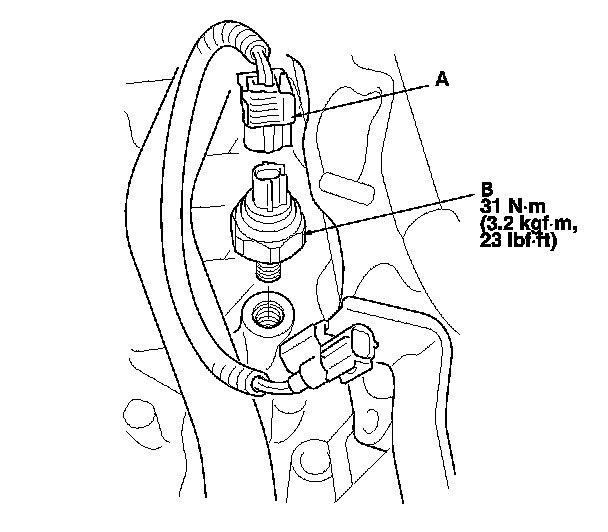

3. Disconnect the knock sensor connector (A), then remove the knock sensor (B).

4. Install the parts in the reverse order of removal.
