Electronic Throttle Control Module: Service and Repair

Throttle Actuator Control Module Replacement

1. Remove the right kick panel. Interior Trim Removal/Installation - Front Door Sill Area

2. Remove the glove box. Glove Box Removal/Installation

3. Remove the HandsFreeLink control unit Service and Repair and the adaptive cruise control (ACC) unit and its bracket (if equipped). Service and Repair

4. Disconnect the throttle actuator control module 16P connector (A).

5. Remove the nuts (B) and the throttle actuator control module (C).

6. Install the parts in the reverse order of removal.

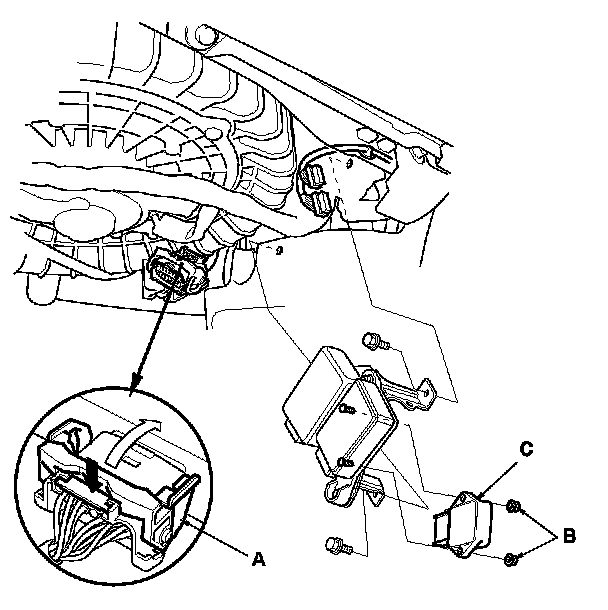

With Adaptive Cruise Control (ACC) System

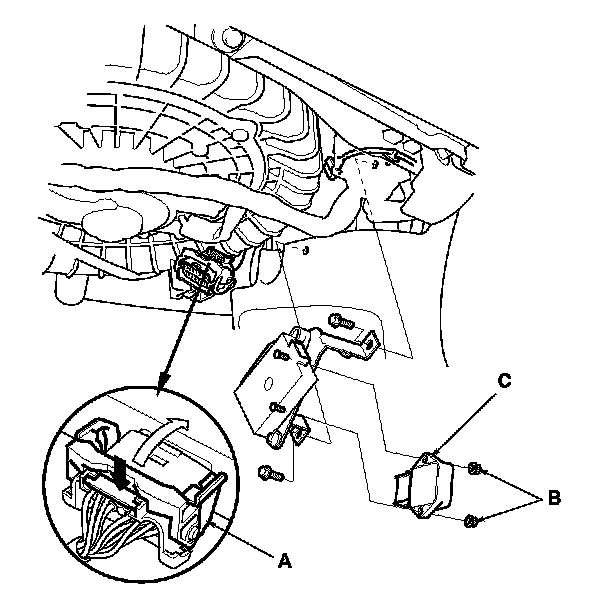

Without Adaptive Cruise Control (ACC) System
