Connecting Rod, Engine

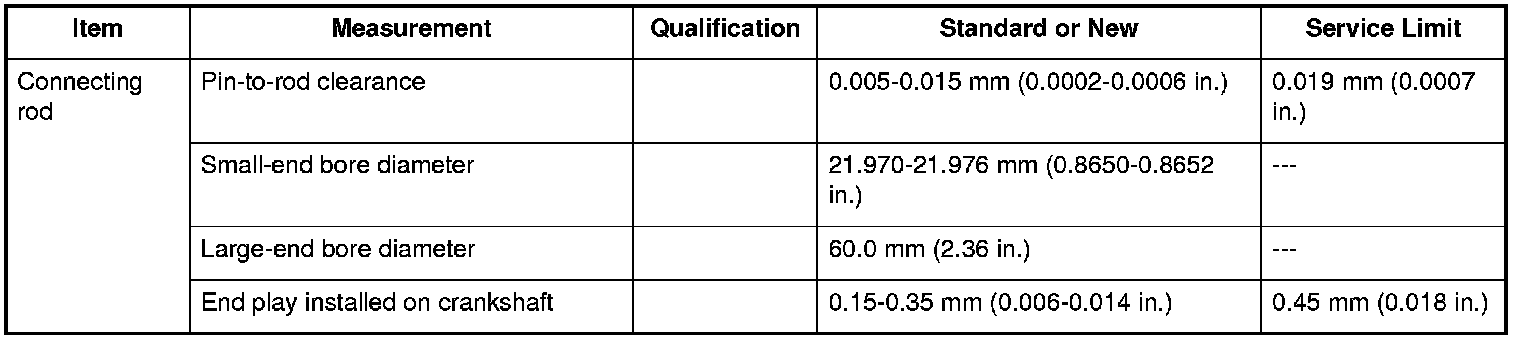

Connecting rod Specifications

Connecting rod






Connecting rod cap
1st 20 N-m (2.0 kgf-m, 14 lbf-ft)
2nd 90 °
