Ignition Key Switch Test

Ignition Key Switch Test

1. Remove the driver's dashboard undercover, Driver's Dashboard Undercover Removal/Installation and the driver's dashboard lower cover, Driver's Dashboard Lower Cover Removal/Installation then remove the steering column covers. Steering Column Removal and Installation

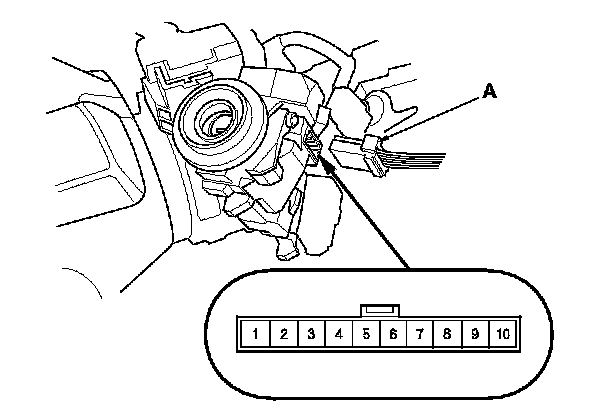

2. Disconnect the 10P connector (A) from the ignition switch control unit.

3. Check for continuity between terminals No. 3 and No. 6.
- There should be continuity with the key in the ignition switch.

- There should be no continuity with the key removed.

4. If the continuity is not as specified, replace the ignition switch control unit.
