Ignition Switch Test

Ignition Switch Test

SRS components are located in this area Review the SRS component locations. Locations and precautions and procedures Service and Repair before performing repairs or servicing.

1. Do the battery terminal disconnection procedure. Procedures

2. Remove the left front door sill trim and left kick panel. Interior Trim Removal/Installation - Front Door Sill Area

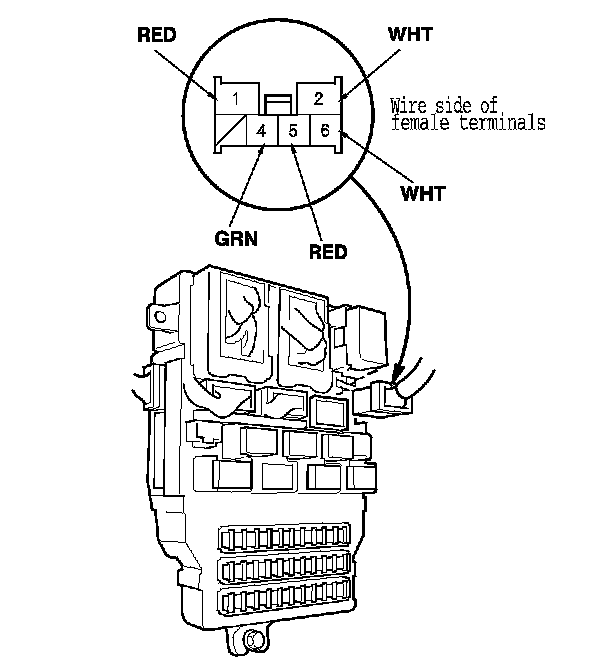

3. Disconnect the 6P connector from the driver's under-dash fuse/relay box.

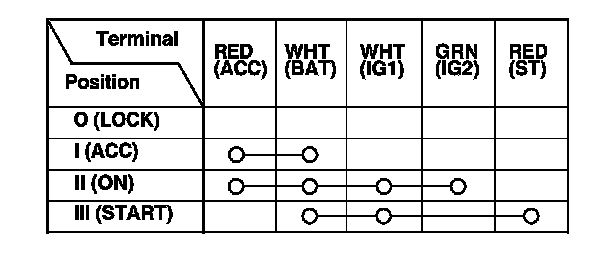

4. Check for continuity between the terminals in each switch position according to the table.

5. If the continuity checks do not agree with the table, replace the steering lock/switch.

6. Do the battery terminal reconnection procedure. Procedures
