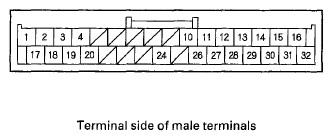

Audio Unit Connector B (32P)
Audio Unit Connector B (32P)
WIRE CAVITY CHART
| Cavity | Wire | Connects to | ||
|---|---|---|---|---|
| B1 | BRN | Stereo amplifier (FR CTR+) | ||
| B2 | PNK | Stereo amplifier (SUB+) | ||
| B3 | GRY(1) | Stereo amplifier (BOSE BUS SHILD) | ||
| B4 | GRN | Stereo amplifier (BOSE BUS+) | ||
| B10 | RED | Climate control unit (CLK-AC) | ||
| B11 | ORN | Smart ECU (IMS 1) | ||
| B12 | PNK | Audio-HVAC subdisplay unit (ACC) | ||
| B13 | GRN | Audio-HVAC subdisplay unit (BLANK) | ||
| B14 | YEL | Audio-HVAC subdisplay unit (CLOCK) | ||
| B15 | RED | Audio-HVAC subdisplay unit (LOAD) | ||
| B16 | BLU | Audio-HVAC subdisplay unit (LCD BL+) | ||
| B17 | LT GRN | Stereo amplifier (FR CTR-) | ||
| B18 | LT BLU | Stereo amplifier (SUB-) | ||
| B19 | GRY(1) | Stereo amplifier (AMP SHILD) | ||
| B20 | RED | Stereo amplifier (BOSE BUS-) | ||
| B24 | LT GRN | HandsFreeLink control unit, HFL/ navigation microphone (HFL MUTE) | ||
| B26 | YEL | Climate control unit (SO-AC) | ||
| B27 | PNK | Smart ECU (IMS 2) | ||
| B28 | PUR | Audio-HVAC subdisplay unit (5 V GND) | ||
| B29 | GRY(1) | Audio-HVAC subdisplay unit (SHILD) | ||
| B30 | BLK | Audio-HVAC subdisplay unit (SEG TEST) | ||
| B31 | WHT | Audio-HVAC subdisplay unit (DATA) | ||
| B32 | ORN | Audio-HVAC subdisplay unit (LCD BL-) | ||
|
||||
