Save Users Memory: Import

After installing the client's original DVD in the new navigation unit, allow the system to boot up. Insert the PC card in the new navigation unit and enter the navigation diagnostic mode.

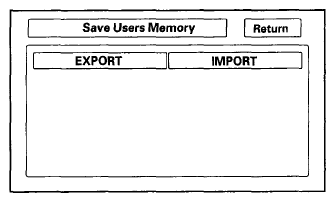

Fig 1: Screen Display - Save Users Memory

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Select YES on the Import Confirmation screen.

Import moves the two files stored by the Export process from the PC card to the new navigation unit. When the transfer is finished (a few seconds) the system will automatically reboot. After the system reboots, remove the PC card from the PC slot.

If the Import button is grayed out, follow the troubleshooting in the FAQs (see PC CARD FAQS ). The client's files can only be transferred to a new navigation control unit if the Model and the Program Flash shown on the Version screen are the same. These files cannot be transferred from an RL to a TSX, or from an RL with version 1.07.00 to another RL with version 1.32.00.
