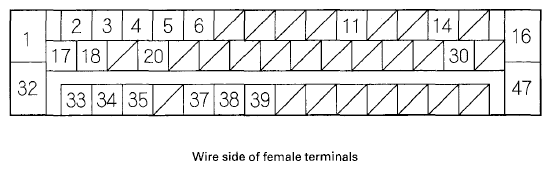

VSA Modulator-Control Unit Inputs and Outputs for 47P Connector (Connector disconnected from the VSA modulator-control unit.)
WIRE COLOR REFERENCE
| Terminal number | Wire color | Terminal sign | Description | Measurement (Disconnect the VSA modulator-control unit 47P connector) | ||
|---|---|---|---|---|---|---|
| Terminals | Conditions | Results | ||||
| 1 | WHT | FSR+B | Power source for the fail-safe relay | 1-GND | Under all conditions | Battery voltage |
| 2 | YEL | RL+B | Detects left-rear wheel speed sensor signal | -- | -- | -- |
| 3 | RED | RL-GND | ||||
| 4 | RED | FL+B | Detects left-front wheel speed sensor signal | -- | ||
| 5 | PNK | RR+B | Detects right-rear wheel speed sensor signal | -- | ||
| 6 | BRN | RR-GND | ||||
| 11 | BLU | K-LINE | Communications with HDS | -- | -- | -- |
| 14 | WHT | CAN-H | F-CAN communication circuit | -- | -- | -- |
| 16 | RED | MR+B | Power source for the motor relay | 16-GND | Under all conditions | Battery voltage |
| 17 | PNK | FR-GND | Detects right-front wheel speed sensor signal | -- | -- | -- |
| 18 | GRN | FR+B | ||||
| 20 | GRN | FL-GND | Detects left-front wheel speed sensor signal | -- | ||
| 30 | RED | CAN-L | F-CAN communication circuit | -- | -- | -- |
