AcuraLink Reprogramming Connector (C617) (USA: Technology Package, CMBS/PAX Package) Connector End View

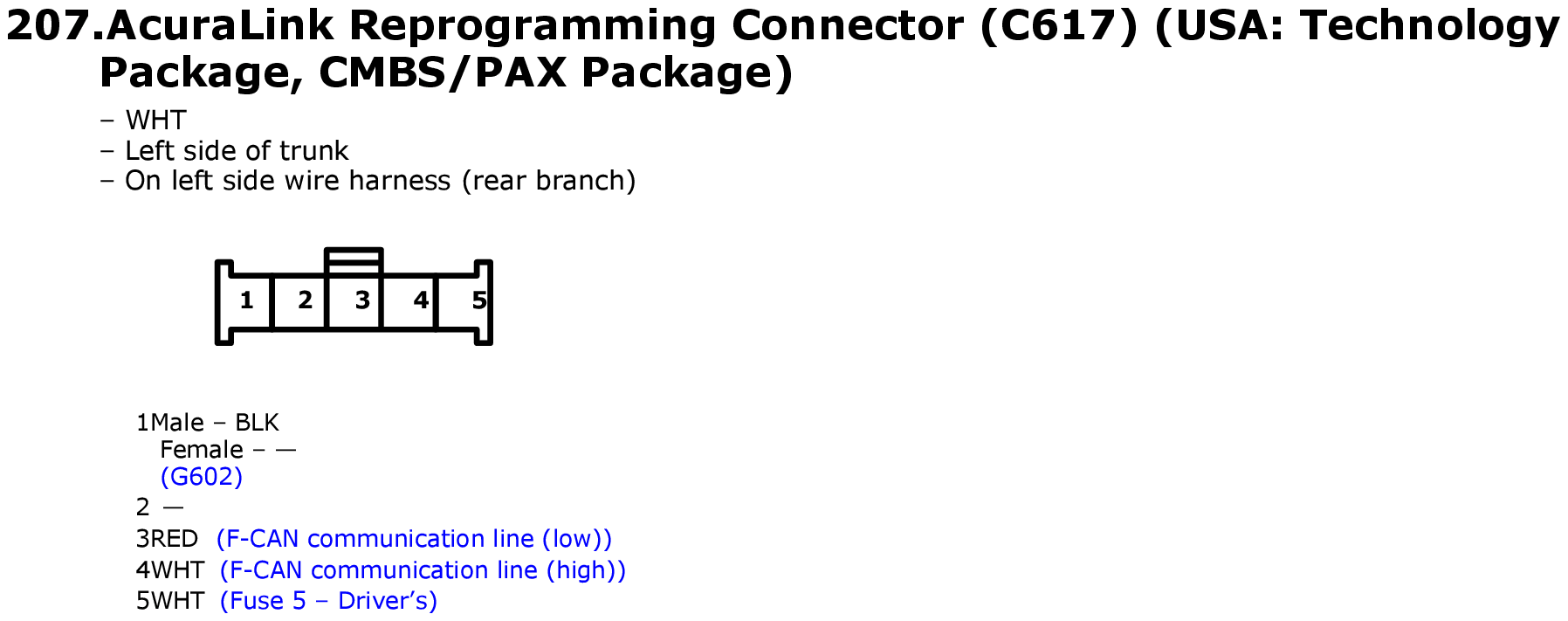

Fig 1: AcuraLink Reprogramming Connector (C617) (USA: Technology Package, CMBS/PAX Package) Connector End View
GHHW10063Courtesy of AMERICAN HONDA MOTOR CO., INC.
