Select/Reset/Information Switch Connector End View

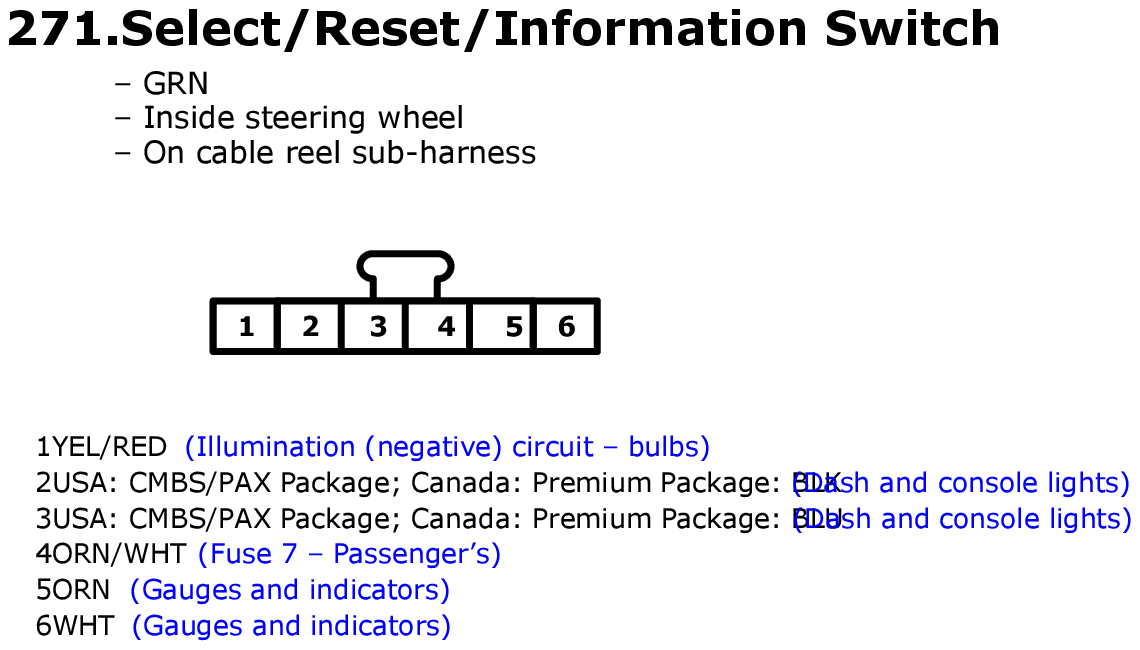

Fig 1: Select/Reset/Information Switch Connector End View
GHHW10127Courtesy of AMERICAN HONDA MOTOR CO., INC.
